Производител: MEAN WELL
- wide input voltage range 90-264VAC
- output voltage 5/7.5/9/12/15/24/48 VDC
- no-load power consumption <0.1W
- compliant with EU ErP standard
- protections: short-circuit, overvoltage and overload
- operating temperature -20 ~ +70°C
- compliance with many standards and certificates
- fully enclosed plastic housing made in class 2 insulation
- 3 years warranty
Prices with discounts and exact stock levels are visible after logging in to the e-shop.
Product out of stock
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Description

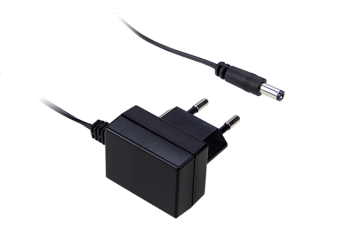

The SGAA06E MEAN WELL power supply is characterized by an output power of 6W and a compact housing made in class II insulation. In addition, the power supply is compliant with energy efficiency level VI, zero input voltage range and a 3-year warranty.
Technical Specification
- SGAS06E: 6W plug-in power supply (SPECIFICATION)
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Plug | Dimensions |
| SGAS06E05-P1J | 5V, 1000mA | +/-5% | 75mV | 75% | 2.1Øx5.5Øx11mm | 41.5x30.5x20mm |
| SGAS06E07-P1J | 7.5V, 800mA | +/-5% | 85mV | 77% | 2.1Øx5.5Øx11mm | 41.5x30.5x20mm |
| SGAS06E09-P1J | 9V, 660mA | +/-5% | 80mV | 79% | 2.1Øx5.5Øx11mm | 41.5x30.5x20mm |
| SGAS06E12-P1J | 12V, 500mA | +/-3% | 80mV | 79% | 2.1Øx5.5Øx11mm | 41.5x30.5x20mm |
| SGAS06E15-P1J | 15V, 400mA | +/-3% | 80mV | 80% | 2.1Øx5.5Øx11mm | 41.5x30.5x20mm |
| SGAS06E24-P1J | 24V, 250mA | +/-2% | 80mV | 82% | 2.1Øx5.5Øx11mm | 41.5x30.5x20mm |
| SGAS06E48-P1J | 48V, 125mA | +/-2% | 80mV | 83% | 2.1Øx5.5Øx11mm | 41.5x30.5x20mm |
