Производител: MEAN WELL
- wide input voltage range 90-264VAC
- output voltage 5/9/12/15/24 VDC
- no-load power consumption <0.075W
- compliant with EU ErP standard
- protections: short-circuit, overvoltage and overload
- operating temperature -20 ~ +70°C
- compliance with many standards and certificates
- fully enclosed plastic housing made in class 2 insulation
- 3 years warranty
Prices with discounts and exact stock levels are visible after logging in to the e-shop.
Product out of stock
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Description

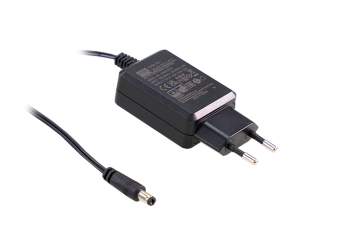

The SGAA15E MEAN WELL power supply is characterized by an output power of 15W and a compact housing made in class II insulation. In addition, the power supply is compliant with energy efficiency level VI, zero input voltage range and a 3-year warranty.
Technical Specification
- SGAS15E: 15W plug-in power supply (SPECIFICATION)
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Plug | Dimensions |
| SGAS15E05-P1J | 5V, 2400mA | +/-5% | 80mV | 79% | 2.1Øx5.5Øx11mm | 57.6x42.1x24.7mm |
| SGAS15E09-P1J | 9V, 1660mA | +/-5% | 80mV | 84% | 2.1Øx5.5Øx11mm | 57.6x42.1x24.7mm |
| SGAS15E12-P1J | 12V, 1250mA | +/-3% | 80mV | 85% | 2.1Øx5.5Øx11mm | 57.6x42.1x24.7mm |
| SGAS15E15-P1J | 15V, 1000mA | +/-3% | 80mV | 85% | 2.1Øx5.5Øx11mm | 57.6x42.1x24.7mm |
| SGAS15E24-P1J | 24V, 625mA | +/-2% | 100mV | 86% | 2.1Øx5.5Øx11mm | 57.6x42.1x24.7mm |
