Производител: MEAN WELL
- wide input voltage range 90-264VAC
- output voltage 5/12/15/24/48 VDC
- no-load power consumption <0.15W
- compliant with EU ErP standard
- protections: short-circuit, overvoltage and overload
- operating temperature -20 ~ +70°C
- compliance with many standards and certificates
- fully enclosed plastic housing made in class 2 insulation
- 3 years warranty
Prices with discounts and exact stock levels are visible after logging in to the e-shop.
Product out of stock
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Description

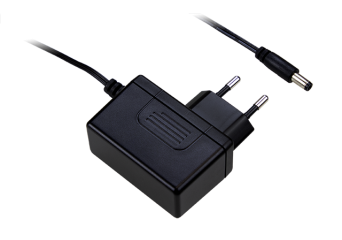

The SGAA15E MEAN WELL power supply is characterized by an output power of 15W and a compact housing made in class II insulation. In addition, the power supply is compliant with energy efficiency level VI, zero input voltage range and a 3-year warranty.
Technical Specification
- SGAS60E: 60W plug-in power supply (SPECIFICATION)
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Plug | Dimensions |
| SGAS60E05-P1J | 5V, 6A | +/-5% | 80mV | 85% | 2.1Øx5.5Øx11mm | 75.5x32x47.5mm |
| SGAS60E12-P1J | 12V, 5A | +/-3% | 80mV | 88% | 2.1Øx5.5Øx11mm | 75.5x32x47.5mm |
| SGAS60E15-P1J | 15V, 4A | +/-3% | 80mV | 88% | 2.1Øx5.5Øx11mm | 75.5x32x47.5mm |
| SGAS60E24-P1J | 24V, 2.5A | +/-2% | 100mV | 89% | 2.1Øx5.5Øx11mm | 75.5x32x47.5mm |
| SGAS60E48-P1J | 48V, 1.25A | +/-2% | 120mV | 90% | 2.1Øx5.5Øx11mm | 75.5x32x47.5mm |
