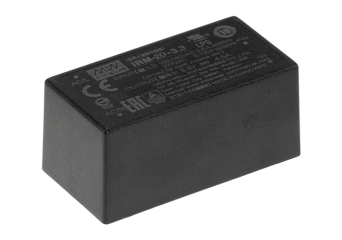

IRM-20
Single-output miniature power supplies: IRM-20-3.3,IRM-20-5,IRM-20-12,IRM-20-15,IRM-20-24
- Universal input 85~305VAC
- EMI Class B without additional components
- Wide operating temp. range -30~70°C
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Isolation Class II
- Pass LPS
High price? Log in and buy cheaper
Направете поръчката до 12:00 часа, пратката ще бъде изпратена на същия ден
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIRM-20-3.3AC/DC module 20W 3.3V 4.5AIn stockWarranty: 8,20 €10,09 €Login to check your price IRM-20-3.3AC/DC module 20W 3.3V 4.5AAvailability:In stockNet price:8,20 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIRM-20-5AC/DC module 20W 5V 4.4AIn stockWarranty: 8,20 €10,09 €Login to check your price IRM-20-5AC/DC module 20W 5V 4.4AAvailability:In stockNet price:8,20 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIRM-20-12AC/DC module 20W 12V 1.8AIn stockWarranty: 8,20 €10,09 €Login to check your price IRM-20-12AC/DC module 20W 12V 1.8AAvailability:In stockNet price:8,20 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIRM-20-15AC/DC module 20W 15V 1.4AIn stockWarranty: 8,20 €10,09 €Login to check your price IRM-20-15AC/DC module 20W 15V 1.4AAvailability:In stockNet price:8,20 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIRM-20-24AC/DC module 20W 24V 0.92AIn stockWarranty: 8,20 €10,09 €Login to check your price IRM-20-24AC/DC module 20W 24V 0.92AAvailability:In stockNet price:8,20 €
Description
IRM series is a miniature AC-DC module-type power supply, ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipments. This product allows the universal input voltage range of 85-305VAC. The 94V-0 flame retardant plastic case and the fully-potted silicone enhance the heat dissipation and meet the anti-vibration demand up to 5G; moreover, it provides the fundamental resistance to dust and moisture.
With the high efficiency and the extremely low no-load power consumption, IRM series fulfills the worldwide regulation for the low power consumption requirement for electronics. The entire series is a Class II design (no FG pin), incorporating the built-in EMI filtering components, enabling the compliance with EN55032 Class B; the supreme EMC features keep the end electronic units from electromagnetic interference.
Available models:
- 3.3V: IRM-01-3.3, IRM-02-3.3, IRM-03-3.3, IRM-05-3.3, IRM-10-3.3, IRM-15-3.3, IRM-20-3.3
- 5V: IRM-01-5, IRM-02-5, IRM-03-5, IRM-05-5, IRM-10-5, IRM-15-5, IRM-20-5
- 9V: IRM-01-9, IRM-02-9, IRM-03-9
- 12V: IRM-01-12, IRM-02-12, IRM-03-12, IRM-05-12, IRM-10-12, IRM-15-12, IRM-20-12
- 15V: IRM-01-15, IRM-02-15, IRM-03-15, IRM-05-15, IRM-10-15, IRM-15-15, IRM-20-15
- 24V: IRM-01-24, IRM-02-24, IRM-03-24, IRM-05-24, IRM-10-24, IRM-15-24, IRM-20-4
Technical Specification
- IRM-20: 15~22W DETAILS
Model Output Tolerance Ripple & noise Efficiency Dimension IRM-20-3.3 3.3V, 0~4.5A +/-2.5% 200mV 76% 52.4x27.2x24mm IRM-20-5 5V, 0~4A +/-2.5% 200mV 79% 52.4x27.2x24mm IRM-20-12 12V, 0~1.8A +/-2.5% 200mV 84% 52.4x27.2x24mm IRM-20-15 15V, 0~1.4A +/-2.5% 200mV 84% 52.4x27.2x24mm IRM-20-24 24V, 0~0.9A +/-2.5% 200mV 85% 52.4x27.2x24mm
