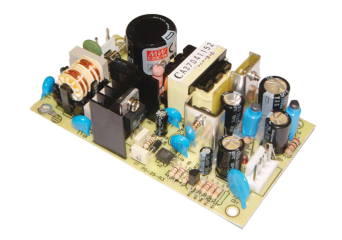

PD-25

2-output power supplies, PCB Open Frame type: PD-25A, PD-25B, PD-2505, PD-2512, PD-2515

  • input voltage 85-264VAC, 120-370VDC
  • protections: short circuit, overvoltage and overload protection
  • Thermal protection
  • cooling with open air circulation
  • working temperature from -10 ~ + 50 ° C
  • compliance with many standards and certificates
  • small size
  • 2 years warranty

Discounted prices and exact stock levels are visible after logging in to the e-shop.

Цена от 13,50 € нетна цена

Висока цена? Влезте в профила си и купете на по-ниска

Наличен на склад

Поръчайте до 12:00 и ще бъде изпратен в рамките на деня

Безплатна доставка от €100

Вижте 5 модела

Promocja cenowa na model HDR-15-5

Продукт, предназначен само за професионална употреба
PD-25

PD-25

Модели

Описание

The series of 2,3-output power supplies without housing is intended for use in broadly understood industrial automation, electronics and telecommunications. The lack of an enclosure allows great freedom of installation. Small size, high quality and reliability make the power supplies perfect for installation in a powered device. Led input and output connectors facilitate connection of wires. Optionally, RPD and RPT models are also available in a version with a housing.

Техническа спецификация

  • PD-25: 24~25W DETAILS

    Model Output Tolerance Ripple & noise Efficiency Max power Dimension
    PD-25A 5V, 0.2~2.5A
    12V, 0.1~1.5A
    +/-2%
    +/-6%
    50mV
    150mV
    71% 25W 107x61x28mm
    PD-25B 5V, 0.2~2.0A
    24V, 0.1~1.0A
    +/-2%
    +/-6%
    50mV
    200mV
    77% 25W 107x61x28mm
    PD-2505 5V, 0.1~3.0A
    -5V, 0.1~2.5A
    +/-6%
    +/-6%
    50mV
    50mV
    73% 25W 107x61x28mm
    PD-2512 12V, 0.1~1.2A
    -12V, 0.1~1.2A
    +/-4%
    +/-4%
    50mV
    50mV
    74% 24W 107x61x28mm
    PD-2515 15V, 0.1~1.0A
    -15V, 0.1~1.0A
    +/-4%
    +/-4%
    50mV
    50mV
    75% 24W 107x61x28mm
    PD-2503 3.3V, 0.2~5.0A
    5V, 0.1~4.0A
    +/-2%
    +5%,-8%
    50mV
    50mV
    72% 25W 107x61x28mm
