PD-45

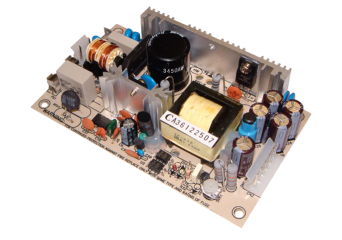

2-output power supplies, PCB Open Frame type: PD-45A, PD-45B
- input voltage 90-264VAC, 127-370VDC
- protections: short circuit, overvoltage and overload protection
- adjustable output voltage in the range of -5 ~ + 10%
- cooling with open air circulation
- working temperature from -10 ~ + 60 ° C
- compliance with many standards and certificates
- small size
- 2 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Цена от €13.70 нетна цена
Висока цена? Влезте в профила си и купете на по-ниска
Изчерпан
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиPD-45Aopen frame power supply 45W 5V, 12VИзчерпан Гаранционен срок: €13.70€16.85Влезте, за да проверите цената си PD-45Aopen frame power supply 45W 5V, 12VНаличност: ИзчерпанНетна цена:€13.70 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиPD-45Bopen frame power supply 45W 5V, 24VИзчерпан Гаранционен срок: €13.70€16.85Влезте, за да проверите цената си PD-45Bopen frame power supply 45W 5V, 24VНаличност: ИзчерпанНетна цена:€13.70
Описание
The series of 2,3-output power supplies without housing is intended for use in broadly understood industrial automation, electronics and telecommunications. The lack of an enclosure allows great freedom of installation. Small size, high quality and reliability make the power supplies perfect for installation in a powered device. Led input and output connectors facilitate connection of wires. Optionally, RPD and RPT models are also available in a version with a housing.
Техническа спецификация
-
PD-45: 40~45W DETAILS
Model Output Tolerance Ripple & noise Efficiency Max power Dimension PD-45A 5V, 0.4~5.0A
12V, 0.2~2.5A+/-4%
+/-7%50mV
120mV77% 40W 127x76x28mm PD-45B 5V, 0.4~5.0A
24V, 0.2~1.8A+/-4%
+/-7%50mV
120mV78% 45W 127x76x28mm
