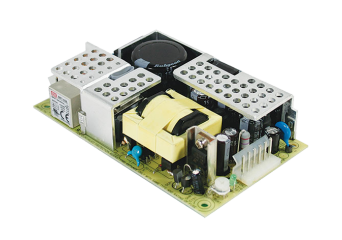

RPT-65
3-output power supplies, PCB Open Frame type: RPT-65E, RPT-65F, RPT-65G
- input voltage 90-264VAC, 127-370VDC
- protections: short circuit, overvoltage and overload protection
- regulation of the output voltage in the range of +/- 5%
- cooling with open air circulation
- optional housing
- working temperature from -10 ~ + 50 ° C
- compliance with many standards and certificates
- small size
- 2 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Цена от €21.90 нетна цена
Висока цена? Влезте в профила си и купете на по-ниска
Изчерпан
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиRPT-65Eopen frame power supply 65W 12V, 5V,-5VИзчерпан Гаранционен срок: €21.90€26.94Влезте, за да проверите цената си RPT-65Eopen frame power supply 65W 12V, 5V,-5VНаличност: ИзчерпанНетна цена:€21.90 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиRPT-65Fopen frame power supply 65W 12V, 5V,-12VИзчерпан Гаранционен срок: €21.90€26.94Влезте, за да проверите цената си RPT-65Fopen frame power supply 65W 12V, 5V,-12VНаличност: ИзчерпанНетна цена:€21.90 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиRPT-65Gopen frame power supply 65W 24V, 5V, 12VИзчерпан Гаранционен срок: €21.90€26.94Влезте, за да проверите цената си RPT-65Gopen frame power supply 65W 24V, 5V, 12VНаличност: ИзчерпанНетна цена:€21.90
Описание
The series of 2,3-output power supplies without housing is intended for use in broadly understood industrial automation, electronics and telecommunications. The lack of an enclosure allows great freedom of installation. Small size, high quality and reliability make the power supplies perfect for installation in a powered device. Led input and output connectors facilitate connection of wires. Optionally, RPD and RPT models are also available in a version with a housing.
Техническа спецификация
-
RPT-65: 63~66W DETAILS
Model Output Tolerance Ripple & noise Efficiency Max power Dimension RPT-65E 12V, 0.18~5.8A
5V, 0.0~1.5A
-5V, 0.0~0.7A+/-2%
+/-5%
+/-5%120mV
100mV
120mV77% 63W 127x76x29mm RPT-65F 12V, 0.18~5.8A
5V, 0.0~1.5A
-12V, 0.0~0.7A+/-2%
+/-5%
+/-5%150mV
100mV
150mV77% 66W 127x76x29mm RPT-65G 24V, 0.09~2.9A
5V, 0.0~1.5A
12V, 0.0~0.7A+/-2%
+/-5%
+/-5%150mV
50mV
100mV81% 66W 127x76x29mm
