HRPG-1000N3

Enclosed power supplies with overload capability

  • input voltage 90-264VAC, 127-370VDC
  • built-in active PFC function
  • efficiency up to 94%
  • possibility of momentary overload up to 320% of the rated power
  • protection: short circuit, overvoltage, overload, thermal
  • no load power consumption < 0.85W
  • output voltage adjustable
  • cooling with a built-in fan
  • output voltage drop compensation function
  • operating temperature -40~+70°C
  • compliance with many standards and certificates
  • 5V "standby" output and remote on/off function
  • possibility of parallel operation (3+1) up to 4000W
  • DC OK signaling
  • 5 years warranty

Prices with discounts and exact stock levels are visible after logging in to the e-shop.

Цена от 198,80 € нетна цена

Висока цена? Влезте в профила си и купете на по-ниска

Изчерпан

Безплатна доставка от €100

Вижте 4 модела

Promocja cenowa na model HDR-15-5

Продукт, предназначен само за професионална употреба
HRPG-1000N3

HRPG-1000N3

Модели

Описание

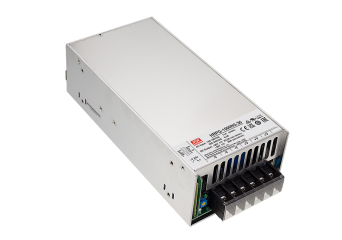

HRPG-1000N3 MEAN WELL are 1000W power supplies with the possibility of parallel operation. HRPG models are ideal for industrial applications where high power and high reliability of the power supply are required.

Thanks to the possibility of momentary overload of the power supply up to 320% of the rated power, it is possible to power devices with a significant starting current.

Техническа спецификация

  • HRPG-1000N3: power supplies with overload capability 960~1008W (SPECIFICATION)
Model Output Tolerance Ripple&Noise Efficiency Dimensions
HRPG-1000N3-12 12V, 0~80A +/-2% 150mV 91.5% 218x105x61.5mm
HRPG-1000N3-24 24V, 0~42A +/-1% 200mV 93% 218x105x61.5mm
HRPG-1000N3-36 36V, 0~28A +/-1% 250mV 93% 218x105x61.5mm
HRPG-1000N3-48 48V, 0~21A +/-1% 250mV 94% 218x105x61.5mm
