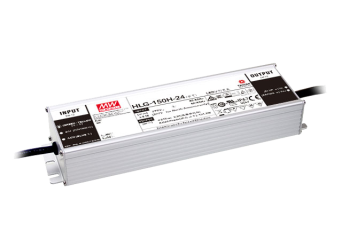

main product photo

HLG-150h

Power supplies for LED lighting systems with a metal housing, waterproof IP67 / IP65: HLG-150-20, HLG-150-24, HLG-150-30, HLG-150-36, HLG-150-42, HLG-150-48, HLG-150-54, HLG-150-24A, HLG-150-30A, HLG-150-36A, HLG-150-42A, HLG-150-48A, HLG-150-54A, HLG-150-24B, HLG-150-30B, HLG-150-36B, HLG-150-42B, HLG-150-48B, HLG-150-54B

  • supply voltage: 90-264VAC; 127-370VDC
  • hermetic metal housing in accordance with the IP67 / IP65 standard
  • built-in active PFC function
  • 4KV surge immunity in accordance with IEC61000-4-5
  • short-circuit, overload, overvoltage and thermal protection
  • regulation of the output voltage with a potentiometer in version A
  • current and output voltage regulation in A models
  • 3in1 dimming function in B version models (1 ~ 10VDC, PWM, resistor)
  • current and voltage regulation + 3in1 dimming function on AB models
  • cooling with open air circulation
  • working temperature -40 ~ + 90 ° C
  • efficiency up to 93.5%
  • compliance with a number of standards and certificates
  • 5-year warranty

Discounted prices and exact stock levels are visible after logging in to the e-shop.

Цена от 48,30 € нетна цена

Висока цена? Влезте в профила си и купете на по-ниска

Наличен на склад

Поръчайте до 12:00 и ще бъде изпратен в рамките на деня

Безплатна доставка от €100

Вижте 36 модела

Promocja cenowa na model HDR-15-5

Продукт, предназначен само за професионална употреба
HLG-150h

HLG-150h

Модели

Описание

The HLG series power supplies are characterized by a sealed metal housing, so they can also be used outdoors. The HLG models are available in four versions, i.e. without the designation, A, B (with the cable outlet) or the C version (with an input-output connector for connecting cables). The models have the option of adjusting the voltage and output currents without opening the housing (through holes with plugs in versions A and C, or by connecting an external resistor, PWM signal or 1 ~ 10VDC voltage in version B). The entire series has a built-in active PFC function. They are designed to power a wide range of devices, including lighting and decorative LED systems, including individual LEDs, strips, modules, panels, halogen LED bulbs, etc.

Техническа спецификация

  • HLG-150H: Power supplies for LED lighting systems 150~154W SPECIFICATION
Model Output Tolerance Ripple&Noise Efficiency Cable length Dimensions
HLG-150-12 12V, 0~12.5A +/-2.5% 150mV 92% 300mm 222.2x68x38.8mm
HLG-150-15 15V, 0~10A +/-2% 150mV 92% 300mm 222.2x68x38.8mm
HLG-150-20 20V, 0~7.5A +/-2% 150mV 93% 300mm 222.2x68x38.8mm
HLG-150-24 24V, 0~6.25A +/-1% 150mV 93% 300mm 222.2x68x38.8mm
HLG-150-30 30V, 0~5.0A +/-1% 200mV 93% 300mm 222.2x68x38.8mm
HLG-150-36 36V, 0~4.2A +/-1% 200mV 93% 300mm 222.2x68x38.8mm
HLG-150-42 42V, 0~3.6A +/-1% 200mV 93% 300mm 222.2x68x38.8mm
HLG-150-48 48V, 0~3.2A +/-1% 200mV 93.5% 300mm 222.2x68x38.8mm
HLG-150-54 54V, 0~2.8A +/-1% 200mV 93.5% 300mm 222.2x68x38.8mm
