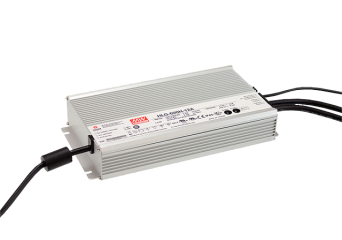

main product photo

HLG-600h

Power supplies for LED lighting systems with a metal housing, waterproof IP67 / IP65: HLG-600-12, HLG-600-15, HLG-600-20, HLG-600-24, HLG-600-30, HLG-600-36, HLG-600-42, HLG-600-48, HLG-600-54, HLG-600-12A, HLG-600-15A, HLG-600-20A, HLG-600-24A, HLG-600-30A, HLG-600-36A, HLG-600-42A, HLG-600-48A, HLG-600-54A, HLG-600-12B, HLG-600-15B, HLG-600-20B, HLG-600-24B, HLG-600-30B, HLG-600-36B, HLG-600-42B, HLG-600-48B, HLG-600-54B

  • supply voltage: 90-305VAC; 127-431VDC
  • hermetic metal housing in accordance with the IP67 / IP65 standard
  • built-in active PFC function
  • 4KV surge immunity in accordance with IEC61000-4-5
  • short-circuit, overload, overvoltage and thermal protection
  • current and output voltage regulation in A models
  • 3in1 dimming function in B version models (1 ~ 10VDC, PWM, resistor)
  • current and voltage regulation + 3in1 dimming function on AB models
  • cooling with open air circulation
  • working temperature -40 ~ + 70 ° C
  • efficiency up to 96%
  • compliance with a number of standards and certificates
  • 5-year warranty

Discounted prices and exact stock levels are visible after logging in to the e-shop.

Цена от €185.10 нетна цена

Висока цена? Влезте в профила си и купете на по-ниска

Наличен на склад

Поръчайте до 12:00 и ще бъде изпратен в рамките на деня

Безплатна доставка от €100

Вижте 36 модела

Promocja cenowa na model HDR-15-5

Продукт, предназначен само за професионална употреба
HLG-600h

HLG-600h

Модели

Описание

The HLG series power supplies are characterized by a sealed metal housing, so they can also be used outdoors. The HLG models are available in four versions, i.e. without the designation, A, B (with the cable outlet) or the C version (with an input-output connector for connecting cables). The models have the option of adjusting the voltage and output currents without opening the housing (through holes with plugs in versions A and C, or by connecting an external resistor, PWM signal or 1 ~ 10VDC voltage in version B). The entire series has a built-in active PFC function. They are designed to power a wide range of devices, including lighting and decorative LED systems, including individual LEDs, strips, modules, panels, halogen LED bulbs, etc.

Техническа спецификация

  • HLG-600H: Power supplies for LED lighting systems 480~604.8W SPECIFICATION
Model Output Tolerance Ripple&Noise EFficiency Cable length Dimensions
HLG-600H-12 12V, 0~40A +/-3% 150mV 92% 300mm 280x144x48.5mm
HLG-600H-12 15V, 0~36A +/-2% 150mV 93.5% 300mm 280x144x48.5mm
HLG-600H-20 20V, 0~28A +/-1.5% 150mV 94.5% 300mm 280x144x48.5mm
HLG-600H-24 24V, 0~25A +/-1% 150mV 95% 300mm 280x144x48.5mm
HLG-600H-30 30V, 0~20A +/-1% 200mV 95% 300mm 280x144x48.5mm
HLG-600H-36 36V, 0~16.7A +/-1% 250mV 95.5% 300mm 280x144x48.5mm
HLG-600H-42 42V, 0~14.3A +/-1% 250mV 96% 300mm 280x144x48.5mm
HLG-600H-48 48V, 0~12.5A +/-1% 250mV 96% 300mm 280x144x48.5mm
HLG-600H-54 54V, 0~11.2A +/-1% 350mV 96% 300mm 280x144x48.5mm

Download
