- output current set with a switch
- built-in DALI interface
- Tunable White function
- two independent output channels
- supply voltage: 180-277VAC
- short-circuit, thermal and overload protection
- active PFC system
- class II insulation
- working temperature -40 ~ + 45 ° C
- no-load power consumption <0.5W
- 5-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
High price? Log in and buy cheaper
Направете поръчката до 12:00 часа, пратката ще бъде изпратена на същия ден
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба

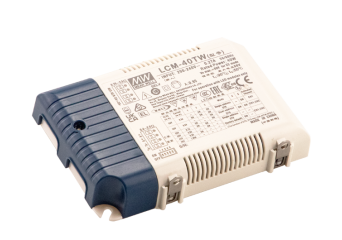

LCM-40TW
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLCM-40TWLED driver 40W 2~100V 0.35~1.05AIn stockWarranty: 33,90 €41,70 €Login to check your price LCM-40TWLED driver 40W 2~100V 0.35~1.05AAvailability:In stockNet price:33,90 €
Description
The LCM-40TW series are constant power power supplies with a built-in DALI interface. The devices have the option of setting the output current using a DIP switch and the PUSH-DIM function - dimming by pressing the bell switch. Moreover, the LCM-40TW power supplies have two independent output channels. This makes it possible to implement the Tunable White function (color temperature adjustment).
LCM-40TW power supplies are designed to power a wide range of devices, including lighting and decorative LED systems, incl. LEDs, strips, modules, panels, halogen LED bulbs, etc.
Technical Specification
- LCM-40TW Constant power supplies with DALI 40W specification
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Dimensions |
| LCM-40TW | 500mA, 20~50V 600mA, 20~50V 700mA, 20~50V (fab) 800mA, 20~50V 900mA, 20~45V 1050mA, 20~38V |
+/-5 | <2% | 87% | 123.5x81.5x23mm |
