Производител: MEAN WELL
- supply voltage: APC-12: 90-264VAC, 127-370VDC APC-12E: 180 ~ 264VAC 254 ~ 370VDC
- insulated plastic housing
- constant output current regardless of load
- short-circuit, overload and overvoltage protection
- class II insulation (without earthing)
- cooling with open air circulation
- working temperature -30 ~ + 70 ° C
- IP30
- compliance with a number of standards and certificates
- low cost, high reliability
- 2 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Цена от 5,70 € без данък
High price? Log in and buy cheaper
In stock
Направете поръчката до 12:00 часа, пратката ще бъде изпратена на същия ден
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAPC-12-350LED driver 12W 9~36V 0.35AIn delivery Warranty: 5,70 €7,01 €Login to check your price APC-12-350LED driver 12W 9~36V 0.35AAvailability: In deliveryNet price:5,70 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAPC-12-700LED driver 12W 9~18V 0.7AIn stockWarranty: 5,70 €7,01 €Login to check your price APC-12-700LED driver 12W 9~18V 0.7AAvailability:In stockNet price:5,70 €
Description

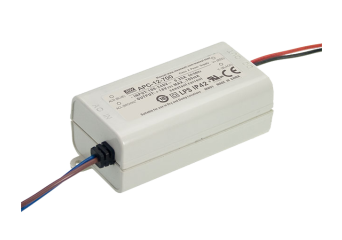

The APC series power supplies are small and compact in size and comply with lighting standards. The power supplies provide a constant output current regardless of the load. They are designed to power a wide range of devices, including lighting and decorative LED systems, including individual LEDs, strips, modules, panels, halogen LED bulbs, etc.
Technical Specification
- APC-12: Power supplies 12.6W SPECIFICATION
- APC-12E: Power supplies for 12.6W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Cable length | Dimensions |
| APC-12-350 | 9~36V, 350mA | +/-5% | 300mV | 82% | 150mm | 77x40x29mm |
| APC-12-700 | 9~18V, 700mA | +/-5% | 250mV | 80% | 150mm | 77x40x29mm |
