Производител: MEAN WELL
- supply voltage: 180-528VAC; 254-747VDC
- hermetic metal housing in accordance with the IP67 / IP65 standard
- built-in active PFC function
- constant current at the output
- short-circuit, over-voltage and thermal protection
- regulation of the output voltage with a potentiometer in version A
- regulation of the output current with a potentiometer
- 3in1 dimming function in B version models (0 ~ 10VDC, PWM, resistor)
- cooling with open air circulation
- working temperature -40 ~ + 70 ° C
- efficiency up to 93%
- compliance with a number of standards and certificates
- 5-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Цена от 347,90 € без данък
High price? Log in and buy cheaper
Product out of stock
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба

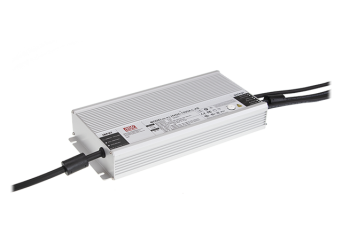

HVGC-1000
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHVGC-1000A-L-ABLED driver 1000W 150~380V 2.8~3.28AOut of stock Warranty: 347,90 €427,92 €Login to check your price HVGC-1000A-L-ABLED driver 1000W 150~380V 2.8~3.28AAvailability: Out of stockNet price:347,90 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHVGC-1000A-M-ABLED driver 1000W 95~240V 4.2~5.25AOut of stock Warranty: 347,90 €427,92 €Login to check your price HVGC-1000A-M-ABLED driver 1000W 95~240V 4.2~5.25AAvailability: Out of stockNet price:347,90 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHVGC-1000A-H-ABLED driver 1000W 70~180V 5.6~7AOut of stock Warranty: 347,90 €427,92 €Login to check your price HVGC-1000A-H-ABLED driver 1000W 70~180V 5.6~7AAvailability: Out of stockNet price:347,90 €
Description
The HVGC series current power supplies have an extended input voltage range, up to 480VAC (single-phase powered). They are available in versions, ie A, B and AB (with cable outlet) or version D (with a built-in dimming timer - optional). The models have a 3 in 1 dimming function. The whole series has a built-in active PFC function. They are designed to power a wide range of devices, including lighting and decorative LED systems, including individual LEDs, strips, modules, panels, halogen LED bulbs, etc.
Technical Specification
- HVGC-1000 LED power supplies with high input voltage 1000W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Cable length | Dimensions |
| HVGC-1000-L | 150~380V, 2800mA | +/-5% | +/-5% Io | 95.5% | 300mm | 310x144x48.5mm |
| HVGC-1000-M | 95~240V, 4200mA | +/-5% | +/-5% Io | 96% | 300mm | 310x144x48.5mm |
| HVGC-1000-H | 70~180V, 5600mA | +/-5% | +/-5% Io | 96% | 300mm | 310x144x48.5mm |
