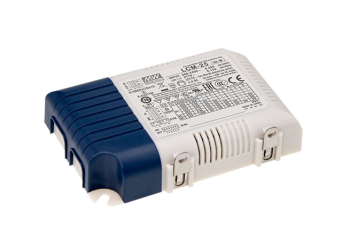

LCM-25
Constant current power supplies with current regulation and DALI interface: LCM-25, LCM-25DA
- output current set with a switch
- supply voltage: 180-277VAC
- fully insulated plastic housing
- short-circuit and thermal protection (over voltage 40W and 60W models)
- active PFC system
- class II insulation
- working temperature -30 ~ + 60 ° C
- IP20
- additional auxiliary output 12V 50mA (40W and 60W models)
- external NTC temperature compensation function
- no-load power consumption <1W (60W models)
- no-load power consumption <0.5W (25W and 40W models)
- synchronization function up to 10 units
- 0 ~ 10VDC and PWM and 0-100KΩ dimming function (LCM-25/40/60)
- built-in DALI LCM-25DA / 40DA / 60DA interface)
- compliance with a number of standards and certificates
- cooling in open air circulation
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
High price? Log in and buy cheaper
Направете поръчката до 12:00 часа, пратката ще бъде изпратена на същия ден
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLCM-25LED driver 25W 6~54V 0.35~1.05AIn stockWarranty: 23,10 €28,41 €Login to check your price LCM-25LED driver 25W 6~54V 0.35~1.05AAvailability:In stockNet price:23,10 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLCM-25DALED driver 25W 6~54V 0.35~1.05AIn stockWarranty: 30,50 €37,52 €Login to check your price LCM-25DALED driver 25W 6~54V 0.35~1.05AAvailability:In stockNet price:30,50 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLCM-25DA2LED driver 25W 6~54V 0.35~1.05A DALI2In stockWarranty: 29,00 €35,67 €Login to check your price LCM-25DA2LED driver 25W 6~54V 0.35~1.05A DALI2Availability:In stockNet price:29,00 €
Description
LCM series power supplies have the option of setting the output current by means of a DIP switch. Models are dimmable from 0 ~ 10Vdc or via PWM. The LCM-25DA, LCM-40DA and LCM-60DA models have a built-in DALI interface and a push-button dimming function. Additionally, they are equipped with an auxiliary output of 12V, 50mA and an output for connecting a thermistor. They are designed to power a wide range of devices, including lighting and decorative LED systems, including LEDs, strips, modules, panels, halogen LED bulbs, etc.
Technical Specification
- LCM-25 / LCM-25DA current power supplies 18,9~25.2W SPECIFICATION / SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Dimensions |
| LCM-25/LCM-25DA | 350mA, 6~54V 500mA, 6~50V 600mA, 6~42V 700mA, 6~36V (fab) 900mA, 6~28V 1050mA, 6~24V |
+/-5 | 400mV | 85,5% | 105.5x68x23mm |
