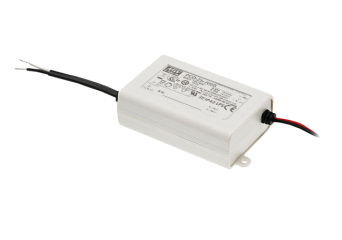

PCD-25
Constant current power supplies for LED systems with PFC: PCD-25-350B, PCD-25-700B, PCD-25-1050B, PCD-25-1400B, PCD-25-350A, PCD-25-700A, PCD-25-1050A, PCD-25-1400A
- supply voltage: 90-135VAC model A, 180-295VAC model B
- fully insulated plastic housing
- short-circuit protection, thermal
- active PFC system
- they cooperate with triac dimmers with phase cutting / cutting
- cooling with open air circulation
- working temperature -30 ~ + 60 ° C (up to + 50 ° C in PCD-40/60
- compliance with a number of standards and certificates
- cooling in open air circulation
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Цена от €14.90 нетна цена
Висока цена? Влезте в профила си и купете на по-ниска
Изчерпан
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиPCD-25-700BLED driver 25W 24~36V 0.7AИзчерпан Гаранционен срок: €14.90€18.33Влезте, за да проверите цената си PCD-25-700BLED driver 25W 24~36V 0.7AНаличност: ИзчерпанНетна цена:€14.90 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиPCD-25-350BLED driver 25W 40-58V 0.35AИзчерпан Гаранционен срок: €14.90€18.33Влезте, за да проверите цената си PCD-25-350BLED driver 25W 40-58V 0.35AНаличност: ИзчерпанНетна цена:€14.90 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиPCD-25-1050BLED driver 25W 16~24V 1.05AИзчерпан Гаранционен срок: €14.90€18.33Влезте, за да проверите цената си PCD-25-1050BLED driver 25W 16~24V 1.05AНаличност: ИзчерпанНетна цена:€14.90 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиPCD-25-1400BLED driver 25W 12~18V 1.4AИзчерпан Гаранционен срок: €14.90€18.33Влезте, за да проверите цената си PCD-25-1400BLED driver 25W 12~18V 1.4AНаличност: ИзчерпанНетна цена:€14.90
Описание
The PCD series current power supplies in cooperation with a triac dimmer connected to the input allow you to adjust the brightness of the powered LEDs. Cables with a length of 7.5 cm at the entrance and 15 cm at the exit are led out of the housing. They are designed to power a wide range of devices, including lighting and decorative LED systems, including LEDs, strips, modules, panels, halogen LED bulbs, etc.
Техническа спецификация
- PCD-25: Constant current power supplies for LED 20~25W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Cable length | Dimensions |
| PCD-25-350 | 40~58V, 350mA | +/-5% | 4.6V | 82% | 75mm/150mm | 84x57x29.5mm |
| PCD-25-700 | 24~36V, 700mA | +/-5% | 2.7V | 81% | 75mm/150mm | 84x57x29.5mm |
| PCD-25-1050 | 16~24V, 1050mA | +/-5% | 2.2V | 80.5% | 75mm/150mm | 84x57x29.5mm |
| PCD-25-1400 | 12~18V, 1400mA | +/-5% | 2.0V | 80% | 75mm/150mm | 84x57x29.5mm |
