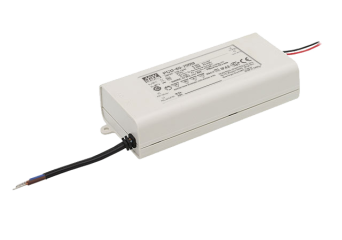

PCD-40

Constant current power supplies for LED systems with PFC: PCD-40-350B, PCD-40-700B, PCD-40-1050B, PCD-40-1400B, PCD-40-350A, PCD-40-700A, PCD-40-1050A, PCD-40-1400A

  • supply voltage: 90-135VAC model A, 180-295VAC model B
  • fully insulated plastic housing
  • short-circuit protection, thermal
  • active PFC system
  • they cooperate with triac dimmers with phase cutting / cutting
  • cooling with open air circulation
  • working temperature -30 ~ + 50 ° C
  • compliance with a number of standards and certificates
  • cooling in open air circulation
  • 3-year warranty

Discounted prices and exact stock levels are visible after logging in to the e-shop.

Цена от €18.70 нетна цена

Висока цена? Влезте в профила си и купете на по-ниска

Изчерпан

Безплатна доставка от €100

Вижте 6 модела

Promocja cenowa na model HDR-15-5

Продукт, предназначен само за професионална употреба
PCD-40

PCD-40

Модели

Описание

The PCD series current power supplies in cooperation with a triac dimmer connected to the input allow you to adjust the brightness of the powered LEDs. Cables with a length of 7.5 cm at the entrance and 15 cm at the exit are led out of the housing. They are designed to power a wide range of devices, including lighting and decorative LED systems, including LEDs, strips, modules, panels, halogen LED bulbs, etc.

Техническа спецификация

  • PCD-40: Constant current power supplies for LED systems 38~41W SPECIFICATION
Model Output Tolerance Ripple&Noise Efficiency Cable length Dimensions
PCD-40-350 70~108V, 350mA +/-5% 9.5V 87% 75mm/150mm 128x60x31.5mm
PCD-40-500 45~80V, 500mA +/-5% 5.0V 87% 75mm/150mm 128x60x31.5mm
PCD-40-700 34~57V, 700mA +/-5% 3.1V 86% 75mm/150mm 128x60x31.5mm
PCD-40-1050 22~38V, 1050mA +/-5% 2.6V 86% 75mm/150mm 128x60x31.5mm
PCD-40-1400 17~29V, 1400mA +/-5% 2.5V 85% 75mm/150mm 128x60x31.5mm
PCD-40-1750 13~23V, 1750mA +/-5% 2.4V 85% 75mm/150mm 128x60x31.5mm
