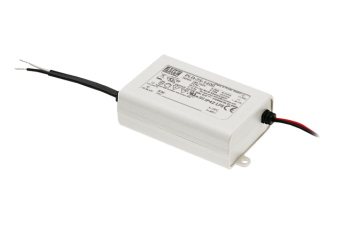

PLD-25
Constant current power supplies for LED systems with PFC: PLD-25-350, PLD-25-700, PLD-25-1050, PLD-25-1400
Производител: MEAN WELL
Производител: MEAN WELL
- supply voltage: 90 ~ 295VAC
- fully insulated plastic housing
- short-circuit protection, thermal
- active PFC system
- constant current at the output
- cooling with open air circulation
- working temperature -30 ~ + 60 ° C
- IP30
- compliance with a number of standards and certificates
- cooling in open air circulation
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Цена от 15,40 € без данък
High price? Log in and buy cheaper
Product out of stock
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPLD-25-350BLED driver 25W 36-58V 0.35AOut of stock Warranty: 15,40 €18,94 €Login to check your price PLD-25-350BLED driver 25W 36-58V 0.35AAvailability: Out of stockNet price:15,40 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPLD-25-700BLED driver 25W 24~36V 0.7AOut of stock Warranty: 15,40 €18,94 €Login to check your price PLD-25-700BLED driver 25W 24~36V 0.7AAvailability: Out of stockNet price:15,40 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPLD-25-1050BLED driver 25W 16~24V 1.05AOut of stock Warranty: 15,40 €18,94 €Login to check your price PLD-25-1050BLED driver 25W 16~24V 1.05AAvailability: Out of stockNet price:15,40 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPLD-25-1400BLED driver 25W 12~18V 1.4AOut of stock Warranty: 15,40 €18,94 €Login to check your price PLD-25-1400BLED driver 25W 12~18V 1.4AAvailability: Out of stockNet price:15,40 €
Description
The PLD series power supplies have an active PFC circuit. Cables with a length of 7.5 cm at the entrance and 15 cm at the exit are led out of the housing. They are designed to power a wide range of devices, including lighting and decorative LED systems, including LEDs, strips, modules, panels, halogen LED bulbs, etc.
Technical Specification
- PLD-25: Constant current power supplies for LED systems with PFC 20~25W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Cable length | Dimensions |
| PLD-25-350 | 40~58V, 350mA | +/-5% | 4.6V | 85% | 75mm/150mm | 84x57x29.5mm |
| PLD-25-700 | 24~36V, 700mA | +/-5% | 2.7V | 86% | 75mm/150mm | 84x57x29.5mm |
| PLD-25-1050 | 16~24V, 1050mA | +/-5% | 2.2V | 85% | 75mm/150mm | 84x57x29.5mm |
| PLD-25-1400 | 12~18V, 1400mA | +/-5% | 2.0V | 84% | 75mm/150mm | 84x57x29.5mm |
