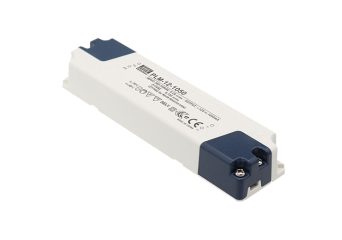

PLM-12
Constant current power supplies for LED systems with PFC: PLM-12-350, PLM-12-500, PLM-12-700, PLM-12-1050, PLM-12E-350, PLM-12E-500, PLM-12E-700, PLM-12E-1050
Производител: MEAN WELL
Производител: MEAN WELL
- supply voltage: 110-295VAC, version E: 180-295VAC
- fully insulated plastic housing
- short circuit protection
- active PFC system
- constant current at the output
- no-load power consumption <0.5W
- cooling with open air circulation
- working temperature -30 ~ + 50 ° C
- class II insulation (no grounding)
- IP30
- compliance with a number of standards and certificates
- cooling in open air circulation
- 2 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Цена от 11,30 € без данък
High price? Log in and buy cheaper
Product out of stock
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPLM-12-1050LED driver 12W 7~12V 1.05AOut of stock Warranty: 11,30 €13,90 €Login to check your price PLM-12-1050LED driver 12W 7~12V 1.05AAvailability: Out of stockNet price:11,30 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPLM-12-700LED driver 12W 11~18V 0.7AOut of stock Warranty: 11,30 €13,90 €Login to check your price PLM-12-700LED driver 12W 11~18V 0.7AAvailability: Out of stockNet price:11,30 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPLM-12-500LED driver 12W 15~24V 0.5AOut of stock Warranty: 11,30 €13,90 €Login to check your price PLM-12-500LED driver 12W 15~24V 0.5AAvailability: Out of stockNet price:11,30 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPLM-12-350LED driver 12W 22~36V 0.35AOut of stock Warranty: 11,30 €13,90 €Login to check your price PLM-12-350LED driver 12W 22~36V 0.35AAvailability: Out of stockNet price:11,30 €
Description
The PLM series power supplies have an active PFC system. The housing with connection terminals enables quick installation. They are designed to power a wide range of devices, including lighting and decorative LED systems, including LEDs, strips, modules, panels, halogen LED bulbs, etc.
Technical Specification
- PLM-12: Constant current power supplies for LED systems with PFC 12-13W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Dimensions |
| PLM-12-350 | 22~36V, 350mA | +/-5 | 3.6V | 85% | 145x38x22mm |
| PLM-12-500 | 15~24V, 500mA | +/-5 | 2.4V | 84% | 145x38x22mm |
| PLM-12-700 | 11~18V, 700mA | +/-5% | 2.4V | 83% | 145x38x22mm |
| PLM-12-1050 | 7~12V, 1050mA | +/-5% | 1.8V | 82% | 145x38x22mm |
