Производител: MEAN WELL
- compact size
- input voltage 90-264VAC, 127-370VDC
- low power consumption in no-load condition <0.5W
- efficiency up to 94%
- possibility of temporary overload up to 150% of power
- protection: short circuit, overvoltage and overload, thermal
- output voltage regulation in the range of +/-10%
- cooling with open air circulation: power 140W
- cooling with forced convection: power 200W
- operating temperature from -40~+80°C
- additional output 12V 0.5A
- compliance with many standards and certificates, including: ITE 62368-1, 60601-1, 60335-1,
- 61558-1/-2-16
- compliance with medical standards
- LED operation indication
- 3 years warranty
Prices with discounts and exact stock levels are visible after logging in to the e-shop.
Цена от 34,80 € без данък
High price? Log in and buy cheaper
Product out of stock
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLOP-200-15open frame power supply 200W 15V 13.4AOut of stock Warranty: 34,80 €42,80 €Login to check your price LOP-200-15open frame power supply 200W 15V 13.4AAvailability: Out of stockNet price:34,80 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLOP-200-18open frame power supply 200W 18V 11.1AOut of stock Warranty: 34,80 €42,80 €Login to check your price LOP-200-18open frame power supply 200W 18V 11.1AAvailability: Out of stockNet price:34,80 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLOP-200-24open frame power supply 200W 24V 8.4AOut of stock Warranty: 34,80 €42,80 €Login to check your price LOP-200-24open frame power supply 200W 24V 8.4AAvailability: Out of stockNet price:34,80 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLOP-200-27open frame power supply 200W 27V 7.5AOut of stock Warranty: 34,80 €42,80 €Login to check your price LOP-200-27open frame power supply 200W 27V 7.5AAvailability: Out of stockNet price:34,80 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLOP-200-36open frame power supply 200W 36V 5.6AOut of stock Warranty: 34,80 €42,80 €Login to check your price LOP-200-36open frame power supply 200W 36V 5.6AAvailability: Out of stockNet price:34,80 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLOP-200-48open frame power supply 200W 48V 4.2AOut of stock Warranty: 34,80 €42,80 €Login to check your price LOP-200-48open frame power supply 200W 48V 4.2AAvailability: Out of stockNet price:34,80 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLOP-200-54open frame power supply 200W 54V 3.8AOut of stock Warranty: 34,80 €42,80 €Login to check your price LOP-200-54open frame power supply 200W 54V 3.8AAvailability: Out of stockNet price:34,80 €
Description

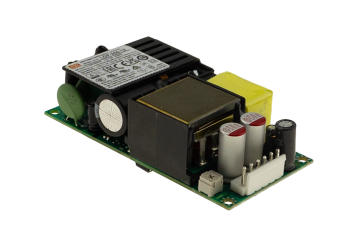

The LOP series of power supplies without housing is intended for use in broadly understood industrial automation, electronics and telecommunications. The lack of a housing allows for great installation freedom. Small size, high efficiency, reliability, low power consumption in no-load condition make the power supplies perfect for installation in the powered device. Prominent input and output connectors make it easier to connect cables.
Technical Specification
- LOP-200: Single-output PCB Open Frame power supplies 200W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Dimensions |
| LOP-200-12 | 12V, 0~16.7A | +/-3% | 120mV | 93% | 101.6x50.8x25.4mm |
| LOP-200-15 | 15V, 0~13.4A | +/-3% | 150mV | 93% | 101.6x50.8x25.4mm |
| LOP-200-18 | 18V, 0~11.1A | +/-3% | 180mV | 93.5% | 101.6x50.8x25.4mm |
| LOP-200-24 | 24V, 0~8.4A | +/-2% | 200mV | 94% | 101.6x50.8x25.4mm |
| LOP-200-27 | 27V, 0~7.5A | +/-1% | 200mV | 94% | 101.6x50.8x25.4mm |
| LOP-200-36 | 36V, 0~5.6A | +/-1% | 250mV | 94% | 101.6x50.8x25.4mm |
| LOP-200-48 | 48V, 0~4.2A | +/-1% | 250mV | 94% | 101.6x50.8x25.4mm |
| LOP-200-54 | 54V, 0~3.8A | +/-1% | 250mV | 94% | 101.6x50.8x25.4mm |
