NOTE: Series is phased-out by the manufacturer avaliable only while stock lasts. As a replacement we suggest NGE12E series. |

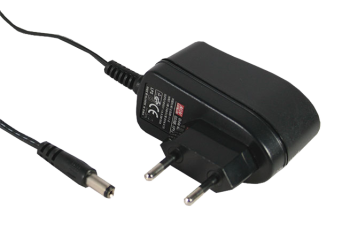

GS06E
Plug-in power supply
- wide input voltage range of 90-264VAC
- no-load power consumption <0.1W
- compliant with ErP 2 and EISA 2007
- protections: short circuit, overvoltage and overload protection
- class II insulation
- working temperature 0 ~ + 50 ° C
- compliance with many standards and certificates
- fully enclosed plastic housing
- 2 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Цена от €10.80 нетна цена
Висока цена? Влезте в профила си и купете на по-ниска
Изчерпан
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиGS06E-2P1Jwall plug-in power supply EU 6W 9V 0.66AНаличен на складГаранционен срок: €10.80€13.28Влезте, за да проверите цената си GS06E-2P1Jwall plug-in power supply EU 6W 9V 0.66AНаличност:Наличен на складНетна цена:€10.80 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиGS06E-3P1Jwall plug-in power supply EU 6W 12V 0.5AНаличен на складГаранционен срок: €10.80€13.28Влезте, за да проверите цената си GS06E-3P1Jwall plug-in power supply EU 6W 12V 0.5AНаличност:Наличен на складНетна цена:€10.80 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиGS06E-6P1Jwall plug-in power supply EU 6W 24V 0.25AНаличен на складГаранционен срок: €10.80€13.28Влезте, за да проверите цената си GS06E-6P1Jwall plug-in power supply EU 6W 24V 0.25AНаличност:Наличен на складНетна цена:€10.80
Useful products
Описание
GS series plug-in power supplies are designed to power a wide range of electronic equipment, including switches, converters, routers, laptops, cash registers, landline telephones, printers, etc. They are characterized by very good parameters, compliance with new standards and low power consumption in the state without load.
Техническа спецификация
- GS06E: Plug-in power supply 5~6W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Pulg | Dimensions |
| GS06E-1P1J | 5V, 0~1A | +/-5% | 50mV | 70% | P1J 2.1Øx5.5Øx11mm | 32x66x42.5mm |
| GS06E-11P1J | 7.5V, 0~0.8A | +/-5% | 80mV | 74% | P1J 2.1Øx5.5Øx11mm | 32x66x42.5mm |
| GS06E-2P1J | 9V, 0~0.66A | +/-5% | 80mV | 75% | P1J 2.1Øx5.5Øx11mm | 32x66x42.5mm |
| GS06E-3P1J | 12V, 0~0.5A | +/-3% | 100mV | 77% | P1J 2.1Øx5.5Øx11mm | 32x66x42.5mm |
| GS06E-4P1J | 15V, 0~0.4A | +/-3% | 120mV | 78% | P1J 2.1Øx5.5Øx11mm | 32x66x42.5mm |
| GS06E-5P1J | 18V, 0~0.33A | +/-3% | 150mV | 78% | P1J 2.1Øx5.5Øx11mm | 32x66x42.5mm |
| GS06E-6P1J | 24V, 0~0.25A | +/-2% | 180mV | 82% | P1J 2.1Øx5.5Øx11mm | 32x66x42.5mm |
| GS06E-8P1J | 48V, 0~0.125A | +/-2% | 200mV | 84% | P1J 2.1Øx5.5Øx11mm | 32x66x42.5mm |
