P1J DC adapters
Цена от 0,50 € без данък
При поръчка до 15:00 ч., пратката ще бъде изпратена същия ден In stock
Производител: MEAN WELL
- wide input voltage range of 90-264VAC
- no-load power consumption <0.3W
- compliant with ErP 2 and EISA 2007
- protections: short circuit, overvoltage and overload protection
- class II insulation
- working temperature 0 ~ + 50 ° C (-20 ~ + 50 ° C for GS36)
- compliance with many standards and certificates
- fully enclosed plastic housing
- 2 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Цена от 10,10 € без данък
High price? Log in and buy cheaper
Product out of stock
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употребаModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGS12E07-P1Iwall plug-in power supply EU 12W 7.5V 1.6AOut of stock Warranty: 10,10 €12,42 €Login to check your price GS12E07-P1Iwall plug-in power supply EU 12W 7.5V 1.6AAvailability: Out of stockNet price:10,10 €
Useful products
Description

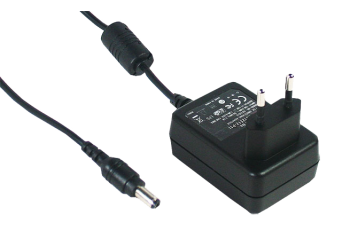

GS series plug-in power supplies are designed to power a wide range of electronic equipment, including switches, converters, routers, laptops, cash registers, landline telephones, printers, etc. They are characterized by very good parameters, compliance with new standards and low power consumption in the state without load.
Technical Specification
- GS12E: Plug-in power supply 10~12W
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Plug | Dimensions |
| GS12E05-P1I | 5V, 0~2A | +/-5% | 50mV | 75% | P1I 2.1Øx5.5Øx9.5mm | 65x47x26.5mm |
| GS12E07-P1I | 7.5V, 0~1.6A | +/-4% | 90mV | 78% | P1I 2.1Øx5.5Øx9.5mm | 65x47x26.5mm |
| GS12E09-P1I | 9V, 0~1.33A | +/-4% | 80mV | 78% | P1I 2.1Øx5.5Øx9.5mm | 65x47x26.5mm |
| GS12E12-P1I | 12V, 0~1A | +/-3% | 120mV | 78% | P1I 2.1Øx5.5Øx9.5mm | 65x47x26.5mm |
| GS12E15-P1I | 15V, 0~0.8A | +/-3% | 150mV | 79% | P1I 2.1Øx5.5Øx9.5mm | 65x47x26.5mm |
| GS12E18-P1I | 18V, 0~0.67A | +/-3% | 180mV | 80% | P1I 2.1Øx5.5Øx9.5mm | 65x47x26.5mm |
| GS12E24-P1I | 24V, 0~0.5A | +/-3% | 200mV | 80% | P1I 2.1Øx5.5Øx9.5mm | 65x47x26.5mm |
