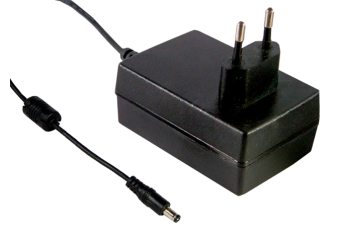

GS18E
Plug-in power supply
- wide input voltage range of 90-264VAC
- no-load power consumption <0.3W
- compliant with ErP 2 and EISA 2007
- protections: short circuit, overvoltage and overload protection
- class II insulation
- working temperature 0 ~ + 50 ° C (-20 ~ + 50 ° C for GS36)
- compliance with many standards and certificates
- fully enclosed plastic housing
- 2 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Изчерпан
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Useful products
Описание
GS series plug-in power supplies are designed to power a wide range of electronic equipment, including switches, converters, routers, laptops, cash registers, landline telephones, printers, etc. They are characterized by very good parameters, compliance with new standards and low power consumption in the state without load.
Техническа спецификация
- GS18E: Plug-in power supply 15~18W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Plug | Dimensions |
| GS18E05-P1J | 5V, 0~3A | +/-5% | 50mV | 76.5% | P1J 2.1Øx5.5Øx11mm | 79x54x33mm |
| GS18E07-P1J | 7.5V, 0~2A | +/-5% | 80mV | 80% | P1J 2.1Øx5.5Øx11mm | 79x54x33mm |
| GS18E09-P1J | 9V, 0~2A | +/-5% | 80mV | 80.5% | P1J 2.1Øx5.5Øx11mm | 79x54x33mm |
| GS18E12-P1J | 12V, 0~1.5A | +/-3% | 80mV | 81% | P1J 2.1Øx5.5Øx11mm | 79x54x33mm |
| GS18E15-P1J | 15V, 0~1.2A | +/-3% | 100mV | 82% | P1J 2.1Øx5.5Øx11mm | 79x54x33mm |
| GS18E18-P1J | 18V, 0~1A | +/-3% | 150mV | 83% | P1J 2.1Øx5.5Øx11mm | 79x54x33mm |
| GS18E24-P1J | 24V, 0~0.75A | +/-2% | 180mV | 85% | P1J 2.1Øx5.5Øx11mm | 79x54x33mm |
| GS18E28-P1J | 28V, 0~0.64A | +/-2% | 240mV | 85% | P1J 2.1Øx5.5Øx11mm | 79x54x33mm |
| GS18E48-P1J | 48V, 0~0.375A | +/-2% | 240mV | 85% | P1J 2.1Øx5.5Øx11mm | 79x54x33mm |
