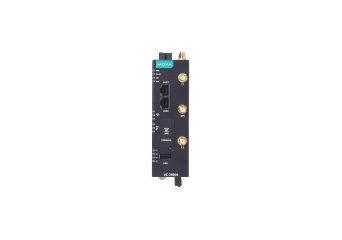

UC-3400A

Arm Cortex-A53 quad-core 64-bit computers with wireless expansion capabilities

Features and Benefits

Armv8 Cortex-A53 1.4 GHz processor
Integrated 4G LTE Cat. 4 module with dual SIM and AT&T approval
Wi-Fi 6 built-in
2 auto-sensing 10/100/1000 Mbps Ethernet ports
CAN ports with 2-kV isolation protection
Moxa Industrial Linux with 10-year superior long-term support
Compliance with IEC 62443-4-2 Security Level 2 requirements
CE/FCC/UL certifications
-40 to 70°C operating temperature range

Изчерпан

Безплатна доставка от €100

Promocja cenowa na model HDR-15-5

Продукт, предназначен само за професионална употреба

Аксесоари
Описание
Техническа спецификация
Download
Препоръчани продукти

UC-3400A

Аксесоари

Модел	Наличност	Гаранция	Wishlist	Вашата цена	Вашата цена	Items Quantity Добави
CBL-F9DPF1x4-BK-100 Console cable with 4-pin connector	Наличен на склад	Гаранционен срок:		€4.00 €4.92 Влезте, за да проверите цената си	Влезте, за да проверите цената си	бр.

CBL-F9DPF1x4-BK-100

Console cable with 4-pin connector

Наличност:

Наличен на склад

Нетна цена:

€4.00

Влезте, за да проверите цената си

Модел	Наличност	Гаранция	Wishlist	Вашата цена	Вашата цена	Items Quantity Добави
PWR-12150-EU-SA-T 12V 1.5A, 5.5/2.1/7.5, w/Nut WT, -40 to 75°C, EU Plug	Наличен на склад	Гаранционен срок:		€37.00 €45.51 Влезте, за да проверите цената си	Влезте, за да проверите цената си	бр.

PWR-12150-EU-SA-T

12V 1.5A, 5.5/2.1/7.5, w/Nut WT, -40 to 75°C, EU Plug

Наличност:

Наличен на склад

Нетна цена:

€37.00

Влезте, за да проверите цената си

Модел	Наличност	Гаранция	Wishlist	Вашата цена	Вашата цена	Items Quantity Добави
PWR-12150-UK-SA-T 12V 1.5A, 5.5/2.1/7.5, w/Nut WT, -40 to 75°C, UK Plug	Изчерпан	Гаранционен срок:		€37.00 €45.51 Влезте, за да проверите цената си	Влезте, за да проверите цената си	бр.

PWR-12150-UK-SA-T

12V 1.5A, 5.5/2.1/7.5, w/Nut WT, -40 to 75°C, UK Plug

Наличност: Изчерпан

Нетна цена:

€37.00

Влезте, за да проверите цената си

Описание

Introduction

Moxa’s UC-3400A Series computers can be used as edge gateways in the field for data pre-processing and transmission, as well as for other embedded data-acquisition applications. The series includes a diverse set of models, each supporting different wireless options and protocols. The UC-3400A’s advanced heat-dissipation design makes it suitable for use in temperatures ranging from -40 to 70°C. In fact, the Wi-Fi and LTE connections can be used simultaneously in both cold and hot environments, allowing you to maximize data pre-processing and transmission capabilities of your applications in harsh operating environments.

The UC-3400A is more than just a hardware solution. In order to offer a better user experience with a Moxa Arm-based computer, the UC-3400A comes equipped with Moxa Industrial Linux, a high-performance industrial-grade Linux distribution with long-term support that is developed by Moxa.

Applications

Remote Terminal Unit (RTU)

Data acquisition

M2M communication (smart gateway)

Digital signage

Factory automation

In-vehicle monitor/data logger (transportation)

Programmable router

Energy usage optimization

Predictive maintenance

Asset management

Appearance

UC-3420A-T-LTE

UC-3424A-T-LTE

UC-3430A-T-LTE-WiFi

UC-3434A-T-LTE-WiFi

Техническа спецификация

Computer

CPU	Arm Cortex‑A53 quad‑core 1.4 GHz
DRAM	4 GB DDR4
Supported OS	Moxa Industrial Linux 3 (Debian 11, kernel 5.10), 2031 EOL See www.moxa.com/MIL
Storage Pre‑installed	16 GB eMMC
Expansion Slots	microSD socket × 1

Computer Interface

Ethernet Ports	Auto‑sensing 10/100/1000 Mbps ports (RJ45) × 2
Serial Ports	RS‑232/422/485 × 2 (software‑selectable, DB9 male)
CAN Ports	UC‑3424A‑T‑LTE, UC‑3434A‑T‑LTE‑WiFi: CAN 2.0 A/B × 2 (DB9 male)
USB 2.0	USB 2.0 host × 1, type‑A
Cellular Antenna Connector	SMA × 2
SIM Format	Nano
Number of SIMs	2
GPS Antenna Connector	SMA × 1
Wi‑Fi Antenna Connector	RP‑SMA × 2
Console Port	RS‑232 (TxD, RxD, GND), 3‑pin header (115200, n, 8, 1)
Bluetooth	UC‑3430A‑T‑LTE‑WiFi, UC‑3434A‑T‑LTE‑WiFi: v5.3
TPM	TPM v2.0

Ethernet Interface

No. of Ports	2
Magnetic Isolation Protection	1.5 kV (built‑in)

Serial Interface

No. of Ports	2
Baudrate	50 bps to 921.60 kbps
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	RTS/CTS, XON/XOFF ADDC (automatic data direction control) for RS‑485

Serial Signals

RS‑232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS‑422	Tx+, Tx‑, Rx+, Rx‑, GND
RS‑485‑2w	Data+, Data‑, GND
RS‑485‑4w	Tx+, Tx‑, Rx+, Rx‑, GND

CAN Interface

No. of Ports	UC‑3424A‑T‑LTE, UC‑3434A‑T‑LTE‑WiFi: 2
Baudrate	10 to 1000 kbps
Industrial Protocols	CAN 2.0A CAN 2.0B
Connector	6‑pin terminal block
Isolation	2 kV (built‑in)
Signals	CAN_H, CAN_L, CAN_GND, CAN_SHLD, CAN_V+, GND

Cellular Interface

Band Options

LTE bands: Band 1 (2100 MHz) / Band 2 (1900 MHz) / Band 3 (1800 MHz) / Band 4 (1700 MHz) / Band 5 (850 MHz) / Band 7 (2600 MHz) / Band 8 (700 MHz) / Band 9 (1800 MHz) /
Band 12 (700 MHz) / Band 13 (700 MHz) / Band 14 (700 MHz) / Band 18 (850 MHz) /
Band 19 (850 MHz) / Band 20 (800 MHz) / Band 25 (1900 MHz) / Band 26 (850 MHz) / Band 28 (700 MHz)
3G bands: Band 1 (2100 MHz) / Band 2 (1900 MHz) / Band 4 (1700 MHz) / Band 5 (850 MHz) / Band 6 (800 MHz) / Band 8 (700 MHz) / Band 19 (850 MHz)
2G bands: Band 2 (1900 MHz) / Band 3 (1800 MHz) / Band 5 (850 MHz) / Band 8 (700 MHz)

GPS Interface

Receiver Types	GPS/GLONASS/BeiDou/Galileo/QZSS
Accuracy	Position: < 2.0 m @ CEP50
Time to First Fix (TTFF)	Hot start: 1.1 s Warm start: 22.1 s Cold start: 29.9 s
Sensitivity	Tracking: ‑160 dBm Acquisition: ‑147 dBm Cold starts: ‑145 dBm
Update Rate	Minimum 1 Hz

WLAN Interface

WLAN Standards	802.11a/b/g/n/ac/ax
Frequency Band	2.4 GHz / 5 GHz

Security Functions

Hardware‑based Security	TPM 2.0 Hardware Root of Trust Secure Boot
Intrusion Detection	Host‑based Intrusion Detection
Security Tools	Security Diagnostic Tool Security Event Auditing Secure Update
Disk Protection	LUKS Disk Encryption
Recovery	One‑step recovery to the last known secure state Dual‑system design with automatic failback
Reliability	Network Keep Alive Network Failover and Failback

LED Indicators

System	Power × 1 READY (device boot‑up) × 1 SIM card indicator × 1
User Programmable	1
LAN	P1, P2: TX, RX per port (10/100/1000 Mbps)
CAN	UC‑3424A‑T‑LTE/UC‑3434A‑T‑LTE‑WiFi: P3, P4: 1 per port for 2 CAN ports
Wireless Signal Strength	UC‑3420A‑T‑LTE, UC‑3424A‑T‑LTE: Cellular × 3 UC‑3430A‑T‑LTE‑WiFi, UC‑3434‑T‑LTE‑WiFi: Cellular × 3, Wi‑Fi × 3

Power Parameters

Input Current	1.09 A @ 9 VDC, 0.21 A @ 48 VDC
Input Voltage	9 to 48 VDC
Power Consumption	10.8 W (max.)

Reliability

Automatic Reboot Trigger	External RTC (real‑time clock)
Alert Tools	External WDT (watchdog timer)

Physical Characteristics

Housing	Metal
IP Rating	IP30
Dimensions	130 × 92 × 41 mm (5.12 × 3.62 × 1.61 in)
Weight	Product only: 550 g (1.22 lb)
Installation	DIN‑rail mounting Wall mounting (with optional kit)

Environmental Limits

Operating Temperature	‑40 to 70 °C (‑40 to 158 °F)
Storage Temperature (package included)	‑40 to 85 °C (‑40 to 185 °F)
Ambient Relative Humidity	5 to 95 % (non‑condensing)

Standards and Certifications

EMC	EN 55032/35 EN 61000‑6‑2/‑6‑4 UKCA RCM
EMI	FCC Part 15B Class A ICES‑003 Class A EN 55032 Class A EN 61000‑6‑4 Class A
EMS	IEC 61000‑4‑2 ESD: Contact 4 kV; Air 8 kV IEC 61000‑4‑3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000‑4‑4 EFT: Power 1 kV; Signal 1 kV IEC 61000‑4‑5 Surge: Power 1 kV, Signal 1 kV IEC 61000‑4‑6 CS: 10 V IEC 61000‑4‑8 PFMF: 30 A/m
Radio Frequency	All models: CE (RED) FCC ISED UKCA RCM NCC UC‑342x models: TELEC
Safety	EN 62368‑1 UL 62368‑1
Vibration	IEC 60068‑2‑64 2 grms @ 5 to 500 Hz, random wave, 1 hr/axis (without USB devices)
Shock	IEC 60068‑2‑27
Carrier Approvals	AT&T Verizon (approval expected Q1 2025) PTCRB
International Approval	CE (RED) FCC ISED UKCA RCM NCC UC‑342x models: TELEC
Hazardous Locations	Expected completion Q1 2025 Class I Division 2 ATEX
Green Product	RoHS, CRoHS, WEEE
