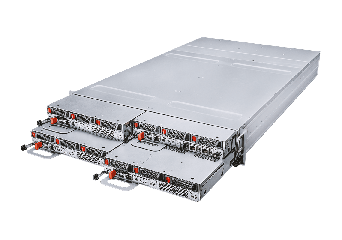

CD270-S4051-X4
2U 4-Nodes chassis, DC-MHS architecture
- 2U4N (DC-MHS architecture)
- Single AMD EPYC 9004/9005 Series processor, up to TDP 400W, per node
- (12) DDR5 RDIMM, 12 channels(1DPC), up to 6400MT/s, per node
- (3) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays per node
- (2) 2280/22110 PCIe 3.0 x2 NVMe M.2 ports per node
- (1) 1000Base-T Dedicated Server Management port per node with:
- ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support
- Dual BIOS & BMC
- TPM2.0 and Hardware Root of Trust module are supported as optional
Изчерпан
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
CD270-S4051-X4
Описание
Application
- Cloud Computing Service
- Content Delivery Network
Техническа спецификация
| Form Factor | 2U4N |
| Dimensions | 448mm (17.6") W x 87mm (3.4") H x 747mm (29.4") D |
| Processor | Single AMD EPYC 9004 Series Processor and EPYC 9005 Series processor, up to TDP 400W, per node |
| Socket | (1) LGA6096 (Socket SP5) per node |
| Chipset | N/A |
| Memory | (12) DDR5 DIMM Slots, 12 channels (1DPC), RDIMM/RIMM-3DS, per node - Max. Frequency: 6400MT/s - Max. Capacity per DIMM: 256GB |
| Drive Bays | (3) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays per node |
| Internal Storage | (2) 2280/22110 PCIe 3.0 x2 NVMe M.2 ports per node |
| Networking | (1) PCIe 5.0 x16 OCP3.0 slot (NCSI supported) per node |
| Front I/O | Per node: (3) Hot-swap 2.5” U.2 drive bays (1) 1000Base-T Dedicated Server Management Port (1) COM USB Type A port (1) USB 2.0 Type-A Port (1) Mini Display port (1) Power LED (Green) Button (1) UID LED (Blue) Button (1) Status LEDs: Green/Red |
| Rear I/O | N/A |
| Security | Node present detection TPM2.0 module supported (optional) ASPEED AST1060 Hardware Root of Trust module supported (optional) |
| Server Management | Per node: (1) 1000Base-T Dedicated Server Management Port ASPEED AST2600 with AMI MegaRAC based firmware supporting IPMI 2.0 and DMTF Redfish API Dual BIOS and dual BMC eMMC for local BMC storage media |
| Environment | System Operating Temperature: 0°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -20°C ~ 70°C (-4°F to 158°F) Non-operating Relative Humidity: 5% to 85% (non-condensing) |
| Power Supply | (1+1) Redundant 2700W CRPS 80PLUS Titanium Dimension (WxHxL): 73.5 x 40 x 185 mm Rating: AC Input: 100-127Vac, 12A, 50-60Hz → Max 1008W, DC +12V/84A, +12Vsb/3A AC Input: 200-240Vac, 16A, 50-60Hz → Max 2700W, DC +12V/225A, +12Vsb/3A DC Input: 240V, 16A → Max 2700W *C19 power cords are required and will be offered as optional accessories. |
| Cooling | (1) EVAC air cooling modules for max. 400W CPU per node (4) Rear 8080 Hot-swap FANs per system |
| Certification | CE, FCC (Class A) |
