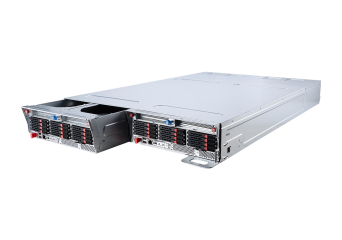

CD281-S4051-X2
2OU 2-Nodes chassis, DC-MHS and ORv3 architecture
- 2OU2N (DC-MHS and ORv3 architecture)
- Single AMD EPYC 9004/9005 Series processor, up to TDP 500W, per node
- (12) DDR5 RDIMM, 12 channels(1DPC), up to 6400MT/s, per node
- (12) Front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays per node
- (2) 2280/22110 PCIe 3.0 x2 NVMe M.2 ports per node
- (2) FHHL PCIe 5.0 x16 slots per node
- (1) 1000Base-T Dedicated Server Management Port per node with:
- ASPEED AST2600 with IPMI 2.0 & DMTF Redfish Support
- Dual BIOS & BMC
- TPM2.0 and Hardware Root of Trust module are supported as optional
Изчерпан
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
CD281-S4051-X2
Описание
Application
- Cloud Computing Service
- Content Delivery Network
Техническа спецификация
| Form Factor | 2OU2N |
| Dimensions | 537mm (21") W x 93mm (3.66") H x 857mm (33.74") D |
| Processor | Single AMD EPYC 9004 Series processor and EPYC 9005 Series processor, up to TDP 500W, per node |
| Socket | (1) LGA6096 (Socket SP5) per node |
| Memory | (12) DDR5 DIMM slots, 12 channels (1DPC), RDIMM/RIMM-3DS, per node - Max. Frequency: 6400MT/s - Max. Capacity per DIMM: 256GB |
| Drive Bays | (12) Front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays per node |
| Internal Storage | (2) 2280/22110 PCIe 3.0 x2 NVMe M.2 ports per node |
| Expansion Slots | (2) FHHL PCIe 5.0 x16 slots per node |
| Networking | (1) PCIe 5.0 x16 OCP3.0 slot (NCSI supported) per node |
| Front I/O | Per node: (12) Hot-swap E3.S 1T drive bays (1) 1000Base-T Dedicated Server Management port (1) COM USB Type A port (1) USB 2.0 Type-A port (1) Mini Display port (1) Power LED (Green) button (1) UID LED (Blue) button (1) Status LEDs: Green/Red |
| Security | Node present detection TPM2.0 module supported (optional) ASPEED AST1060 Hardware Root of Trust module supported (optional) |
| Server Management | Per node: (1) 1000Base-T Dedicated Server Management Port ASPEED AST2600 with AMI MegaRAC based firmware supporting IPMI 2.0 and DMTF Redfish API Dual BIOS and dual BMC eMMC for local BMC storage media |
| Environment | System Operating Temperature: 0°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -20°C ~ 70°C (-4°F to 158°F) Non-operating Relative Humidity: 5% to 85% (non-condensing) |
| Power Supply | DC 48V Busbar |
| Cooling | (1) EVAC air cooling modules for max. 500W CPU per node (4) Rear 8080 Hot-swap FANs per system |
| Certification | CE, FCC (Class A) |
