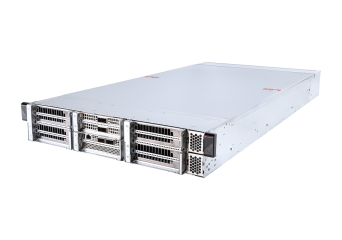

CG290-S3063
2U Server grade IPC, Single Intel Xeon 6500/6700 series., NVIDIA MGX architecture, IPMI 2.0 and DMTF Redfish API
- 2U (NVIDIA MGX architecture)
- Single Intel Xeon 6500/6700 series processor, TDP up to 350W
- (16) DDR5 RDIMM, 8 channels per CPU(2DPC), up to 6400MT/s(1DPC) and 5200MT/s(2DPC)
- (4) Rear or front hot-swap 2.5" drive bays
- (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports
- Max (8) PCIe 5.0 x16 expansion slots, supporting up to (4) NVIDIA H200 NVL PCIe GPU cards or (4) 400W blower cards
- (1) 1000Base-T Dedicated Server Management port with:
- ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support
- Dual BIOS & BMC
- TPM2.0 on board
- Hardware Root of Trust is supported as optional
Изчерпан
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
CG290-S3063
Описание
Application
- Small Scale Inference Deployment
- NVIDIA Omniverse
- Edge Compute
Техническа спецификация
| Form Factor | 2U |
| Dimensions | 438.5mm(17.2")W x88mm(3.46")H x900mm(35.43")D |
| Processor | Single Intel Xeon 6500P-series and 6700P-series "R1S" processors, TDP up to 350W |
| Socket | (1) LGA4710 (Socket E2) |
| Memory | (16) DDR5 DIMM slots, 8 channels per CPU(2DPC), RDIMM/RDIMM-3DS/MRDIMM - Max. Frequency: RDIMM: 6400MT/s(1DPC), 5200MT/s(2DPC) MRDIMM: 8000MT/s(only support 1DPC) - Max. Capacity per DIMM: 256GB(RDIMM), 64GB(MRDIMM) |
| Drive Bays | (4) Rear hot-swap 2.5" drive bays |
| Internal Storage | (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports (CPU0) |
| Expansion Slots | (4) PCIe 5.0 x16 FHFL double wide slots (3) PCIe 5.0 x16 FHFL single wide slots (1) PCIe 5.0 x8 FHFL single wide slot |
| RAID | NVMe RAID 0/1/5/10 support (Intel® VROC RAID key required) |
| Front I/O | (1) 1000Base-T Dedicated Server Management port (1) USB 3.0/2.0 Type-A port (1) Mini Display port (1) Power LED button (1) UID LED button |
| Rear I/O | (4) Hot-swap 2.5" drive bays |
| Security | Chassis intrusion On-board TPM2.0 Hardware Root of Trust - Microchip CEC1736 supported (optional) |
| Server Management | (1) 1000Base-T Dedicated Server Management port ASPEED AST2600 with AMI MegaRAC based firmware supporting IPMI 2.0 and DMTF Redfish API Dual BIOS and dual BMC eMMC for local BMC storage media |
| Environment | System Operating Temperature: 0°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -20°C ~ 70°C (-4°F to 158°F) Non-operating Relative Humidity: 5% to 85% (non-condensing) |
| Power Supply | (2+2) Redundant 2400W CRPS 80 PLUS Titanium Dimensions (WxHxL): 73.5 x 40 x 185 mm Rating: AC Input: 100-127Vac, 12A, 47-63Hz Output: Max 1000W, DC +12V/82A, +12Vsb/3A AC Input: 200-240Vac, 15A, 47-63Hz Output: Max 2400W, DC +12V/196.7A, +12Vsb/3A DC Input: 240V, 15A Output: Max 2400W *C19 power cords are required and will be offered as optional accessories. |
| Cooling | (1) EVAC air cooling modules for max. 350W CPU (6) 6056 System Fans |
| Certification | CE, FCC (Class A) |
