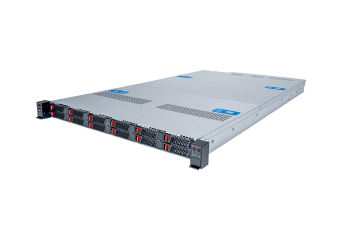

CX171-S3066

1U chassis, DC-MHS architecture, 12x Front hot-swap 2.5" U.2 NVMe,

  • 1U (DC-MHS architecture)
  • Single Intel Xeon 6700 series processor, TDP up to 350W
  • (16) DDR5 RDIMM, 8 channels(2DPC), up to 6400MT/s(1DPC) and 5200MT/s(2DPC)
  • (12) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays
  • (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports
  • (3) PCIe 5.0 x16 expansion slots
  • (2) PCIe 5.0 x16 OCP3 NIC Mezzanine slot (NCSI supported)
  • (1) 1000Base-T Dedicated Server Management port with:
    - ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support
    - Dual BIOS & BMC
    - TPM2.0 and Hardware Root of Trust module are supported as optional
Изчерпан

Безплатна доставка от €100

Promocja cenowa na model HDR-15-5

Продукт, предназначен само за професионална употреба
CX171-S3066

CX171-S3066

Описание

Application

  • Cloud Computing Service
  • Content Delivery Network
  • Network Function Virtualization

Техническа спецификация

Specification Details
Form Factor 1U
Dimensions 438.5mm (17.2") x 43mm (1.7") x 770mm (30.3")
Processor Single Intel Xeon 6700E-series, 6500P-series and 6700P-series processor, TDP up to 350W
Socket (1) LGA4710 (Socket E2)
Memory (16) DDR5 DIMM Slots, 8 channels (2DPC), RDIMM/MRDIMM
- Max Frequency: RDIMM: 6400MT/s (1DPC), 5200MT/s (2DPC)
MRDIMM: 8000MT/s (only support 1DPC)
- Max Capacity per DIMM: 256GB (RDIMM), 64GB (MRDIMM)
*MRDIMMs are only supported with Intel® Xeon® 6 P-core series processors
Drive Bays (12) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays
*Drive Bay #8 to #11 are only functional with R1S CPU
Internal Storage (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports
Expansion Slots (1) PCIe 5.0 x16 FHHL single wide slot
(2) PCIe 5.0 x16 HHHL single wide slots (*one slot only functional with R1S CPU)
Networking (2) PCIe 5.0 x16 OCP3.0 slots (NCSI supported)
*NCSI only one slot is functional at the same time
*OCP1 slot is only functional with R1S CPU
RAID NVMe RAID 0/1/5/10 support (Intel® VROC RAID key required)
Front I/O (12) Hot-swap 2.5" U.2 drive bays
(1) USB 3.0 Type-A Port
(1) USB 2.0 Type-A Port
(1) System Power LED Button
(1) UID LED Button
(1) Reset Button
(4) Status LEDs: Fault/LAN/M.2
Rear I/O (1) 1000Base-T Dedicated Server Management Port
(1) COM USB Type A port
(1) USB 2.0 Type-A Port
(1) Mini Display port
(1) Power LED (Green) Button
(1) UID LED (Blue) Button
(1) Status LEDs: Green/Red
Security Chassis Intrusion
TPM2.0 module supported (optional)
ASPEED AST1060 Hardware Root of Trust module supported (optional)
Server Management (1) 1000Base-T Dedicated Server Management Port
ASPEED AST2600 with AMI MegaRAC firmware supporting IPMI 2.0 and DMTF Redfish API
Dual BIOS and dual BMC
eMMC for local BMC storage media
Environment System Operating Temperature: 0°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature: -20°C ~ 70°C (-4°F ~ 158°F)
Non-operating Relative Humidity: 5% to 85% (non-condensing)
Power Supply (1+1) Redundant 1500W MCRPS 80PLUS Titanium
Dimensions: 60 x 40 x 185 mm

Rating:
AC Input: 100-110Vac, 12A, 50-60Hz → Max 1000W, DC +12V/81.96A, +12Vsb/3A
AC Input: 110-120Vac, 12A, 50-60Hz → Max 1100W, DC +12V/90.16A, +12Vsb/3A
AC Input: 200-240Vac, 9A, 50-60Hz → Max 1500W, DC +12V/122.95A, +12Vsb/3A
DC Input: 240V, 7.5A → Max 1500W
*C13 power cords are required and will be offered as optional accessories
Cooling (1) EVAC air cooling module for max. 350W CPU
(8) 4056 Hot-swap System Fans
Certification CE, FCC (Class A)
