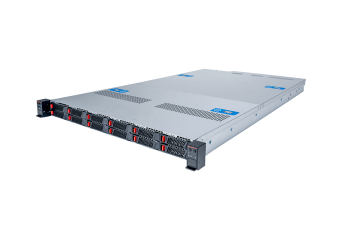

CX171-S4056
1U chassis, DC-MHS architecture, 12x Front hot-swap 2.5" U.2 NVMe
- 1U (DC-MHS architecture)
- Single AMD EPYC 9004/9005 Series processor,TDP up to 400W
- (24) DDR5 RDIMM, 12 channels(2DPC), up to 5200MT/s(1DPC) and 4400MT/s(2DPC)
- (12) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays
- (2) 2280/22110 PCIe 3.0 x2 NVMe M.2 ports
- (2) PCIe 5.0 x16 expansion slots
- (2) PCIe 5.0 x16 OCP3 NIC Mezzanine slot (NCSI supported)
- (1) 1000Base-T Dedicated Server Management port with:
- ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support
- Dual BIOS & BMC
- TPM2.0 and Hardware Root of Trust module are supported as optional
Изчерпан
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
CX171-S4056
Описание
Application
- Cloud Computing Service
- Content Delivery Network
- Network Function Virtualization
Техническа спецификация
| Specification | Details |
|---|---|
| Form Factor | 1U |
| Dimensions | 438.5mm (17.2") x 43mm (1.7") x 770mm (30.3") |
| Processor | Single AMD EPYC 9004 Series and EPYC 9005 Series processors, up to TDP 500W |
| Memory | (24) DDR5 DIMM Slots, 12 channels (2DPC), RDIMM/RIMM-3DS - Max Frequency: 5200MT/s (1DPC), 4400MT/s (2DPC) - Max Capacity per DIMM: 256GB |
| Drive Bays | (12) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays |
| Internal Storage | (2) 2280/22110 PCIe 3.0 x2 NVMe M.2 ports |
| Expansion Slots | (1) PCIe 5.0 x16 FHHL single wide slot (1) PCIe 5.0 x16 HHHL single wide slot |
| Networking | (2) PCIe 5.0 x16 OCP3.0 slots (NCSI supported) *NCSI only one slot is functional at the same time |
| Front I/O | (12) Hot-swap 2.5" U.2 drive bays (1) USB 3.0 Type-A Port (1) USB 2.0 Type-A Port (1) System Power LED Button (1) UID LED Button (1) Reset Button (4) Status LEDs: Fault/LAN/M.2 |
| Rear I/O | (1) 1000Base-T Dedicated Server Management Port (1) COM USB Type-A Port (1) USB 2.0 Type-A Port (1) Mini DisplayPort (1) Power LED (Green) Button (1) UID LED (Blue) Button (1) Status LEDs: Green/Red |
| Security | Chassis Intrusion TPM2.0 module supported (optional) ASPEED AST1060 Hardware Root of Trust module supported (optional) |
| Server Management | (1) 1000Base-T Dedicated Server Management Port ASPEED AST2600 with AMI MegaRAC firmware, IPMI 2.0, DMTF Redfish API Dual BIOS and dual BMC eMMC for local BMC storage |
| Environment | Operating Temp: 0°C ~ 35°C (50°F ~ 95°F) Non-operating Temp: -20°C ~ 70°C (-4°F ~ 158°F) Non-operating Humidity: 5% ~ 85% (non-condensing) |
| Power Supply | (1+1) Redundant 1500W MCRPS 80PLUS Titanium Dimensions: 60 x 40 x 185 mm Rating: AC 100-110V, 12A, 50-60Hz → Max 1000W (12V/81.96A, +12Vsb/3A) AC 110-120V, 12A, 50-60Hz → Max 1100W (12V/90.16A, +12Vsb/3A) AC 200-240V, 9A, 50-60Hz → Max 1500W (12V/122.95A, +12Vsb/3A) DC 240V, 7.5A → Max 1500W *C13 power cords are required, available as optional accessories. |
| Cooling | (1) EVAC air cooling module for max. 500W CPU (8) 4056 Hot-swap System Fans |
