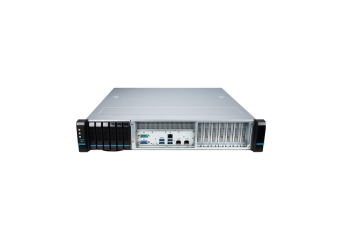

E2101
2U chassis, 6x Hot-swap 2.5” SATA, 4x PCIe 4.0 x16 support HHHL PCIe cards
- 2U
- Single Socket SP3, supports AMD EPYC 7002 and 7003 series processors
- (8) DDR4 DIMM Slots, 1DPC, upto 3200MT/s, RDIMM/LRDIMM
- (4) PCIe 4.0 x16 slots support HHHL PCIe cards
- (3) PCIe 4.0 x8 slots support HHHL PCIe cards
- (6) Hot-swap 2.5” SATA 3.0 drive bays
- (1) 1000Base-T Dedicated Server Management Port
- ASPEED AST2500 with IPMI & DMTF Redfish support
- Dual BMC
Изчерпан
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Техническа спецификация
| Feature | E2101-01 |
|---|---|
| Form Factor | 2U |
| Dimensions | 438mm (17.2") W × 87mm (3.4") H × 450mm (17.7") D |
| Processor | Single AMD EPYC 7002 and 7003 Series processors, up to TDP 225W |
| Socket | (1) AMD Socket SP3 |
| Chipset | N/A |
| Memory | (8) DDR4 DIMM slots, 8 channels (1DPC), RDIMM/LRDIMM - Max. Frequency: 3200MT/s - Max. Capacity per DIMM: RDIMM: 64GB LRDIMM: 128GB 3DS RDIMM/LRDIMM: 256GB |
| Drive Bays | (6) Hot-swap 2.5” SATA 3.0 drive bays |
| Internal Storage | (2) M.2 2280/22110 PCIe 4.0 x4 |
| Expansion Slots | (4) PCIe 4.0 x16 HHHL (3) PCIe 4.0 x8 HHHL |
| Networking | (2) 10GBaseT Ethernet ports (Intel X710AT2, both support NCSI) |
| RAID | N/A |
| Front I/O | (6) Hot-swap 2.5” SATA (2) 10GBaseT Ethernet ports (1) 1000Base-T Mgmt. Port (4) USB 3.2 Gen 1 Type-A (1) VGA D-Sub (1) COM RJ45 (1) USB 2.0 Type-A (1) Power button (1) UID button (1) Reset button (3) LEDs: HDD/Fault/LAN |
| Rear I/O | (4) 8038 Easy-Swap chassis fans |
| TPM | (1) TPM header with SPI interface |
| Security | TPM 2.0 |
| Server Management | (1) 1000Base-T Dedicated Server Management Port (Realtek RTL8211E-VB) ASPEED AST2500 with AMI MegaRAC firmware (IPMI 2.0, Redfish API) Dual BMC |
| Environment | Operating Temperature: 0°C ~ 35°C Non-operating Temperature: -20°C ~ 70°C Non-operating Humidity: 5% ~ 85% (non-condensing) |
| Power Supply | (1+1) 1300W CRPS 80+ Platinum |
| Cooling | (1) Active cooling module for max. 225W CPU (4) 8038 Easy-Swap chassis fans |
| Certification | CE, FCC (Class A) |
