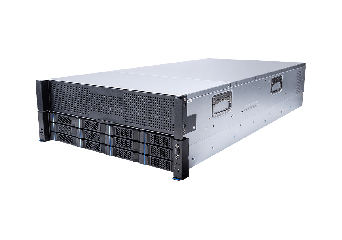

G4201RAS8U4-P5-Ti
4U Server grade IPC, Dual Intel Xeon 4th/5th gen., 8x PCIe 5.0 x16 slots, IPMI 2.0 and DMTF Redfish API
- 4U
- Dual 4th/5th Generation Intel Xeon Scalable Processors
- (32) DDR5 DIMM Slots, 2DPC, upto 5600MT/s, RDIMM
- (8) PCIe 5.0 x16 slots
- (1) PCIe 4.0 x16 slot
- (12) Hot-swap 3.5"/2.5" drive bays support (4) NVMe + (8) SATA
- (1)1000Base-T Ethernet port (Intel I210AT)
- BMC ASPEED AST2600 with IPMI & DMTF Redfish support
Изчерпан
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
G4201RAS8U4-P5-Ti
Описание
Application
- Cloud Computing Service
- Content Delivery Network
- AI Inference and Fine-tuning
Техническа спецификация
| Form Factor | 4U |
| Dimensions | 438mm(17.2")W x 176mm(6.9")H x 897mm(35.3")D |
| Processor | Dual 4th/5th Generation Intel Xeon Scalable Processors, TDP up to 350W |
| Socket | (2) Intel LGA4677 sockets |
| Chipset | Intel C741 |
| Memory | (32) DDR5 DIMM Slots, 2DPC, RDIMM/3DS - Max. Frequency 5th Gen Intel Xeon: 5600 MT/s (1DPC), 4400 MT/s (2DPC) 4th Gen Intel Xeon: 4800 MT/s (1DPC), 4400 MT/s (2DPC) - Max Capacity per DIMM: 256GB |
| Drive Bays | (12) Hot-swap 3.5"/2.5" drive bays support (4) U.2 PCIe 4.0 NVMe + (8) SATA 3.0 |
| Internal Storage | (2) M.2 2280/22110 PCIe 3.0 x2 from PCH |
| Expansion Slots | (8) PCIe 5.0 x16 FHFL slots (4 from CPU0 & 4 from CPU1) (1) PCIe 4.0 x16 FHFL slot from CPU1 * all slots are directly connected to CPU sockets, switchless topology |
| Networking | (1)1000Base-T Ethernet port (Intel I210AT) |
| RAID | Intel SATA RAID 0/1/10/5 integrated (1) VROC header for Intel VROC key to support NVMe RAID 0/1/5/10 |
| Front I/O | (12) Hot-swap 3.5"/2.5" drive bays (1) USB 3.2 Gen 1 Type-A port (1) USB2.0 port (1) System power LED button (1) UID LED button (1) Reset button (4) Status LEDs : Fault/LAN/M.2 |
| Rear I/O | (1) 1000Base-T Dedicated Server Management port (1) 1000Base-T Ethernet port (2) USB 3.2 Gen 1 Type-A ports (1) VGA D-Sub port (1) COM RJ45 port |
| TPM | (1) TPM header with SPI interface |
| Security | TPM 2.0 |
| Server Management | ASPEED AST2600 with AMI MegaRAC based firmware supporting IPMI 2.0 and DMTF Redfish API (1) 1000Base-T Dedicated Server Management Port Dual BIOS and BMC |
| Environment | System Operating Temperature: 0°C ~ 35°C Non-operating Temperature: -20°C ~ 70°C Non-operating Relative Humidity: 5% to 85% (non-condensing) |
| Power Supply | (3+1) Redundant 2000W CRPS 80 PLUS Titanium Dimension (WxHxL): 73.5 x 40 x 185 mm AC Input: 100-127Vac, 15A, 47-63Hz Output: Max 1000W, DC +12V/81.8A, +12Vsb/3A AC Input: 200-219Vac, 10A, 47-63Hz Output: Max 1800W, DC +12V/147A, +12Vsb/3A AC Input: 220-240Vac, 10A, 47-63Hz Output: Max 2000W, DC +12V/163.6A, +12Vsb/3A DC Input: 240V, 10A Output: Max 2000W *C13 power cords are required and will be offered as optional accessories. |
| Cooling | (6) 6038 Hot-swap fans (4) 8080 Internal fans |
| Certification | CE, FCC (Class A) |
