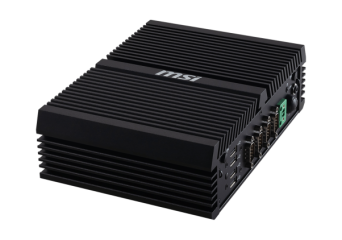

MS-C906
Compact-Size Box PC with Intel Raptor Lake-P U Series Processor for Ultra Low-Power Fanless Solution
Производител: MSI IPC
Производител: MSI IPC
- Intel 13th Gen Raptor Lake-P Embedded/Industrial SKU Series
- 1 DDR5 5200 MHz SODIMM Slots up to 32GB
- Quadruple independent displays: 4 HDMI
- 4 2.5GbE LAN with RJ-45
- 1 M.2 B key (with NANO SIM-holder) support 5G/LTE, 1 M.2 E key
- 1 M.2 M key, 1 SATA 3.0 for storage (2.5” SSD)
- 4 USB 3.2 Gen 2, 4 USB 2.0, 4 COM, Audio
- Onboard TPM 2.0
- 6 opening resrved for antennas
- Anti-Vibration & Shockproof Design to Compliance IEC 61373
- Wide operating temperature: -20~70°C
- Wide Voltage DC-IN 12~24V (OCP & OVP)
- Ultra-Compact with fanless design
- Support EDID Lock Display Function
Product out of stock
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употребаDescription
Technical Specification
| Embedded SKUs | Industrial SKUs | |
| CPU | Intel Mobile 13th Gen Raptor Lake-P U Series Processors, Core i5-1345UE / i3-1315UE | Intel Mobile 13th Gen Raptor Lake-P U Series Processors, Core i5-1345URE / i3-1315URE |
| Memory | Up to 32 GB DDR5 | |
| DisplayPort | - | |
| HDMI | 4 | |
| Audio | Mic in, Line out | |
| Gigabit Ethernet | 4x GbE LAN | 4x 2.5 GbE LAN |
| Slot 2,5" HDD | 1 x 2.5" SSD Bay | |
| Slot mSATA | - | |
| Slot M.2 | 1 x M.2 M key 2280 (PCIe Gen4 x4 NVMe) 1 x M.2 B key 2242/3042 (PCIe x1, USB 2.0, w/NANO SIMHolder) 1 x M.2 E key 2230 (PCIe x1, USB 2.0, w/CNVi) |
|
| Slot miniPCIe | - | |
| USB 3.2 | 4 | |
| USB 2.0 | 4 | |
| Serial Ports | 4 x COM ports COM1~4: RS-232/422/485, 0V/5V/12V |
|
| GPIO | 16-bit (Default 8 x GPI, 8 x GPO), 5V | |
| CANbus | - | |
| TPM | Onboard TPM 2.0 | |
| Operating System | Windows, Linux | |
| Working temperature | 0~50 °C (w/SSD) | -20~70 °C (w/ WTdevices) |
