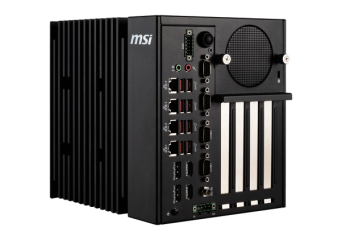

MS-C910

Outperform Fanless Box PC with 12th/13th/14th Gen Intel Core i Processor for Rugged, Scalable & Versatile Solution

Производител: MSI IPC
Производител: MSI IPC
  • Intel 12th/13th/14th Gen Alder Lake-S/Raptor Lake-S/Raptor Lake-S Refresh Series with R680E
  • 2 DDR5 5600 MHz ECC/non-ECC SODIMM slots up to 64GB
  • Quadruple independent displays: 2 HDMI, 2 DP
  • 4 2.5 GbE LAN with RJ-45
  • SKU1: 1 PCIe x16 (Gen 4), 3 PCI
    SKU2: 1 PCIe x16 (Gen 4), 1 PCI, 1 x Mini-PCIe (Full size)
    SKU3: 1 PCIe x16 (Gen 4)
  • 2 SATA 3.0 (2.5” SSD/HDD, 7mm) for storage
  • SATA RAID 0/1
  • 8 USB 3.2 Gen 2, 2 USB 3.2 Gen 1, 3 USB 2.0, 4 COM, Audio, GPIO, System FAN
  • Onboard TPM 2.0
  • SKU1 : 2 COM (RS232/422/485) (by option)
  • GPIO 8-bit supports, 5~35V, Isolation 1.5KV
  • Easy access CPU, HDD, memory, expansion slots
  • Anti-Vibration & Shockproof Design to Compliance IEC 60068-2
  • Wide Voltage DC-IN 8~48V
  • Fanless design
Product out of stock

Безплатна доставка от €100

Promocja cenowa na model HDR-15-5

Продукт, предназначен само за професионална употреба

Description

Technical Specification

  SKU1 SKU2 SKU3
CPU Intel Core i3/i5/i7/i9 12th/13th/14th gen.
Memory Up to 64 GB DDR5
DisplayPort 2
HDMI 2
Audio Mic in, Line out
Gigabit Ethernet 4x 2.5 GbE LAN with RJ-45
2,5" HDD/SSD 2 (7mm), RAID 0/1
Slot mSATA -
Slot M.2 1 x M.2 M key 2280 (PCIe Gen4 x4 NVMe & SATA 3.0)
Slot miniPCIe - 1 x Full-size -
PCIe x16 1 1 1
PCI 3 1 -
USB 3.2 10
Serial Ports

4 x COM ports
COM1~2: RS232/422/485,
COM3~4: RS232, (internal)
COM5~6: RS232/422/485, isolation (by option)

4 x COM ports
COM1~2: RS232/422/485,
COM3~4: RS232
4 x COM ports
COM1~2: RS232/422/485,
COM3~4: RS232
GPIO 8-bits (4 x GPI; 4 x GPO), 5~35V
Anetnna 2 openings reserved for antennas - -
TPM Onboard TPM 2.0
Operating system Windows, Linux
Working temperature 0 ~ 50°C
