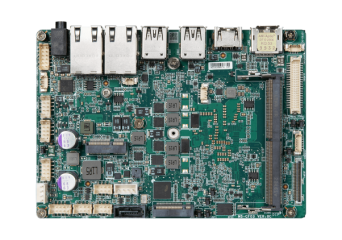

MS-CF03
3.5” SBC with Intel Alder Lake-N for Fanless, Ultra Low-Power, Wide Voltage Range & High-Performance Solution
Производител: MSI IPC
Производител: MSI IPC
- Intel Alder Lake-N PC Client & Embedded Series SoC
- DDR5 4800 MHz SODIMM Slot up to 16GB
- Triple independent displays: DP, HDMI, LVDS, eDP
- 2 2.5 GbE LAN with RJ-45
- 1 M.2 B Key, 1 M.2 E Key Slot
- SATA 3.0 for storage
- 2 USB 3.2 Gen 2, 2 USB 3.2 Gen 1, 6 USB 2.0, 2 COM (1 RS-485), GPIO, Audio, Amplifier-6W
- Wide Voltage DC-IN 9~36V
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Description
Technical Specification
| CPU | Intel IOTG Alder Lake-N Processor N97 (2.0GHz, up to 3.6GHz), Intel IOTG Alder Lake-N Processor N200 (1.0GHz, up to 3.7GHz), Intel Core i3-N305 (1.8GHz, up to 3.8GHz), Intel Atom x7425E (1.5GHz, up to 3.4GHz) |
| Memory | Up to 16 GB DDR5 |
| VGA (DSub) | - |
| HDMI | 1 |
| DisplayPort | 1 |
| eDP | 1 |
| LVDS | 1 x Dual Channel 18/24-bit |
| Gigabit Ethernet | 2 x Intel 2.5 GbE LAN |
| SATA | 1 x SATA 3.0 |
| M.2 | 1 x M.2 B key 2242/3042/2280 (SATA/PCIe x1), 1 x M.2 E key 2230 (PCIe x1, USB 2.0) |
| GPIO | 8-bit (4 x GPI; 4 x GPO), 5V |
| USB 3.2 | 4 |
| USB 2.0 | 6 (internal) |
| RS-232 | 1 (internal) |
| RS-232/422/485 | 1 (internal) |
| TPM | Onboard TPM 2.0 |
| Operating System | Windows, Linux |
| Working temperature | -10°C ~ +60°C |
Download
