NR600-P5G

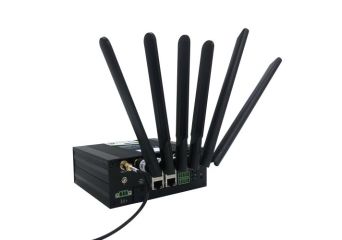

Navigateworx NR600-P5G industrial 5G VPN router enables wireless data connectivity over public and private 5G cellular networks.
Производител: Navigateworx Technologies
Производител: Navigateworx Technologies
- Wireless Mobile Broadband 5G/4G/3G Connection
- Dual band 2.4GHz and 5.8GHz Wi-Fi access
- Industrial design for harsh environment
Цена от 1 183,00 € без данък
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
NR600-P5G
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNR600-P5GRouter 5G, 4 * Gigabit Eth, 2 * SIM, 1 *RS232 + 1 * RS485 + 2 * DI + 2 * DO, 802.11b/g/n/ac, GPSIn stockWarranty: 1 183,00 €1 455,09 €Login to check your price NR600-P5GRouter 5G, 4 * Gigabit Eth, 2 * SIM, 1 *RS232 + 1 * RS485 + 2 * DI + 2 * DO, 802.11b/g/n/ac, GPSAvailability:In stockNet price:1 183,00 €
Description
Industrial Internet access
• Wireless Mobile Broadband 5G/4G/3G Connection
• Connection manager ensure seamless communication
• Dual band 2.4GHz and 5.8GHz Wi-Fi access
Designed for industrial usage
• Power Input Range 9 to 48 VDC
• Industrial design for harsh environment
• Aluminum enclosure and wall mounting installation
Easy to use and easy maintenance
• User friendly web interface for user interaction
• Support Central Management Platform
Technical Specification
| CELLULAR | |
| Frequency Bands | 5G NR NSA: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/ 5G NR SA: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78/n79 LTE-FDD: B1/B3/B5/B7/B8/B18/B19/B20/B26/B28/B32 LTE-TDD: B34/B38/B39/B40/B41/B42/B43 WCDMA: B1/B2/B4/B5/B8/B19 More Bands Demands please contact with us |
| SIM | 2 x SIM slots 1.8V / 3V |
| SIM Failover | Auto-switch cases: weak signal data limited SMS limited no network network denied data connection fail |
| Antennas | 4 external antennas SMA |
| ETHERNET | |
| Number of Ports | 1 x WAN + 3 x LAN Auto 10/100/1000 Mbps |
| Magnet Isolation Protection | 1.5 KV |
| DUAL BAND Wi-Fi | |
| Wireless Mode | 802.11a/b/g/n/ac 2*2 MIMO supports AP and Client modes |
| Wireless Speed | 5.8G: Up to 867Mbps 2.4G: Up to 300Mbps |
| Wireless Security | WPA WPA2 WEP CCMP TKIP |
| Frequency Bands | 5.15 – 5.825 GHz (5 GHz ISM band) 2.412 - 2.484 GHz (2.4 GHz ISM band) |
| Antennas | 2 x RP-SMA |
| GNSS/GPS | |
| Features | Gen9C Lite of Qualcomm (GPS GLONASS BeiDou Galileo) |
| Protocol | NMEA-0183 |
| Antennas | 1 x SMA female with 50 ohms impedance |
| SERIAL | |
| Number of Ports | 1 x RS-232 (3 PIN) + 1 x RS-485 |
| Connector | Terminal block |
| ESD Protection | ± 15 KV |
| Band Rate | 300bps to 115200bps |
| DIGITAL INPUT & OUTPUT | |
| Type | 2 x DI + 2 x DO |
| Connector | Terminal block |
| Isolation | 3KVDC or 2KVrms |
| Absolute maximum VDC | 36VDC |
| Absolute maximum ADC | 100 mA |
| NETWORK | ||||
| Routing | Static routing | |||
| Network Protocols | TCP UDP IPv4 ICMP NTP DNS HTTP HTTPS ARP PPP PPPoE DHCP IP Passthrough VRRP | |||
| Connection Manager | Ping Detection Timer Reboot ICMP for link detection | |||
| Firewall | Flexible access control of TCP UDP ICMP packets MAC address filter | |||
| DDNS | Supported some service providers others can be configured manually | |||
| SMS | SMS Configuration SMS Gateway SMS Notification | |||
| VPN | ||||
| OpenVPN | OpenVPN server/client mode client mode supports up to 5 x OpenVPN tunnels | |||
| GRE | layer2 and layer3 supports up to 5 x GRE VPN tunnels | |||
| IPsec | IKEv1 IKEv2 supports up to 5 x IPsec VPN tunnels | |||
| MONITORING & MANAGEMENT | ||||
| Web GUI | HTTP/HTTPS firmware upgrade | |||
| Command Line Interface | SSHv2 and TELNET | |||
| Management platform | Central Management Platform | |||
| POWER | ||||
| Connector | 3-pin 3.5 mm female socket | |||
| Input Voltage Range | 9 to 48 VDC | |||
| Power Consumption | Idle: 300 mA@12 V Data link: 600 mA (peak) @12 V |
|||
| HARDWARE SPECIFICATION | ||||
| Watchdog | Built-in watchdog | |||
| LEDs | SYS NET USR RSSI x 3 | |||
| Reset Button | Reset/restore to factory default button | |||
| Ingress Protection | IP30 | |||
| Housing & Weight | Aluminum 600g | |||
| Dimensions | 145mm x 122mm x 54mm | |||
| Installations | DIN-rail mounting | |||
| Operating Temperature | -30 °C to 70 °C | |||
| Extended Temperature | -40 °C to 85 °C | |||
| Operating Humidity | 5% to 95% non-condensing | |||
| APP CENTER | ||||
| APPs | VPN: L2TP PPTP DMVPN Network: Dynamic Routing (RIPv1/v2 OSPF BGP) Email Notification Enforce Modem PPP QoS Management: AT over IP AT over COM AT over Telnet SNMPv1/v2/v3/ TR069 DMPC Protocol Converter: Modbus Master Modbus Slave Modbus ID Mapping Modbus Gateway IEC101-104 DLMS to IEC104 Modbus to DNP3 More Apps Demands please contact with us |
|||
| APPROVAL | ||||
| EMI | EN 55032:2012 Class B | |||
| EMS | IEC 61000-4-2 ESD: IEC 61000-4-3 RS: IEC 61000-4-4 EFT: IEC 61000-4-5 Surge: IEC 61000-4-6 CS: |
Level 3 Level 3 Level 3 Level 3 Level 3 |
||
| Vibration | EN50155 |
|||
