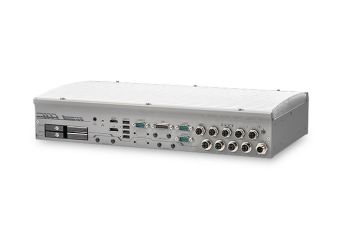

GT-92RL-H
EN50155 & EN45545 19" rack mount railway GPU computer including NVIDIA 2000 ADA, supporting Intel 14th/13th/12thGen Core processor, 43V to 160V DC input with isolation
Производител: Neousys Technology
Производител: Neousys Technology
- Compliant with EN 50155 mandatory tests and EN 45545-2
- Intel 14th/13th/12th-Gen LGA1700 processor (35W/65W)
- Fanless GPU computer with NVIDIA RTX 2000 ADA
- 2U 19" chassis for rack-mount or wall-mount
- 43V to 160V wide-range DC input via M12 K-Coded connector
- 9x GbE ports via M12 X-Coded connectors
- 1x M.2 2280 M key with PCIe-Gen 4x4 for NVMe storge
- 2x full-size mPCIe sockets for MVB modules
- -40°C to 55°C wide-temperature fanless operation
Product out of stock
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
GT-92RL-H
Description
Technical Specification
| GT-92RL-H | ||
| CPU | Intel Core i3/i5/i7/i9 12th/13th/14th gen. | |
| Acceleration GPU | NVIDIA RTX 2000 ADA | |
| Memory | Up to 64 GB DDR5 | |
| DisplayPort | 1 | |
| HDMI | 1 | |
| Audio | Mic-in, Speaker-out | |
| Gigabit Ethernet | 9x GbE LAN (M12 x-coded) | |
| Slot 2,5" HDD | 2x hot-swappable HDD trays (supports RAID 0/ 1) | |
| Slot mSATA | - | |
| Slot M.2 | 1x M.2 2280 M key NVMe socket (PCIe Gen4x4) for NVMe SSD | |
| Slot miniPCIe | 2x full-size (with SIM slot) | |
| USB 3.2 | 4 | |
| Serial Ports | 2x isolated 3-wire RS232/ 422/ 485 | |
| Isolated DIO | 4-CH isolated DI and 4-CH isolated DO | |
| CANbus | 2x isolated CAN 2.0 | |
| TPM | Supports dTPM 2.0 | |
| DC Input | 43V to 160V DC input (M12 K-coded) | |
| Working temperature | -40 ~ 55°C | |
