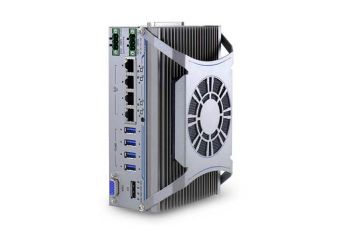

Nuvis-534RT
Ultrakompaktowy kontroler wizyjny AMD Ryzen ™ V1000 ze specjalnymi wejściami / wyjściami i sterowaniem w czasie rzeczywistym
- AMD Ryzen™ Embedded V1807B quad-core 45W CPU
- Integrated vision-specific I/O
- 4-CH CC/ CV lighting controller
- 4-CH camera trigger outputs
- 1-CH quadrature encoder input
- 8-CH isolated DI and 8-CH isolated DO
- Patented MCU-based, real-time I/O control by DTIO V2* and NuMCU
- Built-in camera interfaces
- Four Gigabit PoE+ ports with screw-lock
- Four USB 3.1 Gen1 ports with screw-lock
- M.2 2280 M key NVMe (Gen3 x2) socket for fast storage access
Nuvis-534RT
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNuvis-534RT-DTIOAMD Ryzen V1000, 4xPoE+, DTIO V2Out of stock Warranty: Nuvis-534RT-DTIOAMD Ryzen V1000, 4xPoE+, DTIO V2Availability: Out of stock- -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNuvis-534RT-NuMCUAMD Ryzen V1000, 4xPoE+ NuMCUOut of stock Warranty: Nuvis-534RT-NuMCUAMD Ryzen V1000, 4xPoE+ NuMCUAvailability: Out of stock-
Description
Nuvis-534RT is a high-performance, ultra-compact vision controller with integrated camera interfaces, vision-specific I/Os and real-time control for machine vision applications. Powered by AMD Ryzen™ Embedded V1807B 4-core/ 8-thread processor, it provides superb performances equivalent to mainstream desktop CPUs while retaining a compact 8.2 cm x 11.8 cm x 17.6 cm (3.4" x 4.6" x 6.9") dimensions.
Nuvis-534RT offers unique vision-oriented I/O configurations, including constant-current lighting controller to directly drive LED lights, isolated 12V trigger output to activate cameras, encoder input to acquire position information and DIO to connect to sensors/ actuators. All of the above visionoriented I/Os can be managed by Neousys' patented DTIO V2 or NuMCU technology to guarantee real-time trigger/ response in micro-second scale.
The combination of high performance and small footprint gives Nuvis-534RT a distinctive 1-2 punch advantage where the vision system can be easily deployed with USB 3.1 Gen1 and GigE cameras and without space restrictions.
Technical Specification
| Processor | AMD Ryzen™ V1807B CPU (4C/ 8T, 2M Cache, 3.35/ 3.8 GHz,35W - 54W TDP) |
|---|---|
| Chipset | SoC |
| Grafika | Vega GPU with 11 compute units |
| Pamięć | Do 34 GB DDR4 3200 |
| AMT | N/A |
| TPM | N/A |
| Ethernet | 4x Gigabit Ethernet Intel® I350-AM4 |
| POE+ | IEEE 802.3at PoE+ PSE, 80 W |
| USB | 4x USB 3.1 Gen1 |
| Displays | 1x DVI-D, 1920 x 1200 1x DisplayPort, 4096 x 2304 |
| Serial Ports | 1x RS-232/422/485 (COM1) 3x RS-232 (COM2 / 3/4) lub 1x port RS-422/485 (COM2) |
| Audio | 1x 3.5 mm jack dla mic-in i speaker-out |
| PCI/PCI Express | N/A |
| Mini PCI-E | N/A |
| M.2 | N/A |
| Expandable I/O | N/A |
| SATA HDD | N/A |
| M.2 | 1x gniazdo M.2 2280 M key NVMe (PCIe Gen3 x2) dla NVMe SSD |
| mSATA | N/A |
| DC Input | 1x 3-s 8 V do 35 V DC |
| RC & LED | 1x 3-PWR LED |
| Dimension | 82 mm (W) x 118 mm (D) x 176 mm (H) |
| Weight | 1.5 kg |
| Mounting | Wall |
| Working temperature | -25°C ~ 70°C */** |
| Storage temp | -40°C ~ 85°C |
| Humidity | 10% ~ 90% , Non-condensing |
| Vibrations | MIL-STD-810G, Method 514.6, Category 4 |
| Shocks | MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
| EMC | CE/FCC Class A, wedługEN 55032 & EN 55024 |
* For sub-zero and over 60°C operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
** Operating temperature is up to 70°C only if external-accessible fan is installed.
