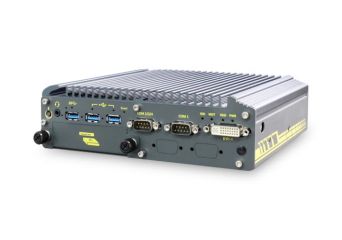

NUVO-2615RL
EN50155 & EN45545 Intel® Elkhart Lake Atom® x6425E Railway Computer Supporting 110 VDC Input and 4x M12 PoE+
Производител: Neousys Technology
Производител: Neousys Technology
- Compliant with EN 50155 mandatory tests and EN 45545-2
- Rugged -40°C to 70°C fanless operations, compliant with EN 50155 Class OT4
- 43V to 160V wide-range DC input with 1500Vdc insulation
- Intel® Elkhart Lake Atom® x6425E quad-core 2.0GHz/ 3.0GHz 12W processor
- 4x PoE+ GbE ports via M12 x-coded connectors
- Built-in SuperCAP UPS for power interruptions > 30 seconds (Nuvo-2615RL only)
- 1x front-accessible 2.5" 15mm HDD tray and 1x M.2 2280 SATA SSD
- 2x full-size mini-PCIe sockets and 1x M.2 3042/3052 B Key
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
NUVO-2615RL
Description
Technical Specification
| Parametr | NUVO-2615RL |
| Processor | Atom x6425E quad-core |
| RAM | up to 32 GB DDR4 |
| VGA (DSub) | 1 |
| HDMI | - |
| DVI | 1 |
| Audio | Mic in, Speaker out |
| PoE | 4 |
| 2,5" Storage | 1 (max. 15 mm) |
| Slot mSATA | - |
| Slot M.2 | 1x M.2 2280 M key, 1x M.2 3042/3052 B key |
| USB 3.1 | 1 |
| USB 2.0 | 2 |
| DIO | 4-CH isolated DI and 4-CH isolated DO |
| RS-232 | 3 |
| RS-485 | 1 |
| RS-422/485 | 1 |
| Slot miniPCIe | 2 full-size |
| TPM | - |
| DC Input | 43V - 160V |
| Working temp. | -40°C ~ +70°C |
