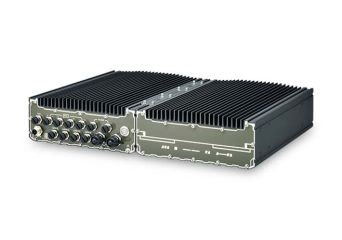

SEMIL-2000GC
IP69K waterproof computer including NVIDIA L4, supporting Intel 14th/ 13th/ 12th-Gen Core processor with 2x M12 10GbE and 4x M12 PoE+ ports
Производител: Neousys Technology
Производител: Neousys Technology
- IP69K waterproof GPU computer with NVIDIA L4 GPU
- -40°C to 70°C wide-temperature fanless operation
- 2x 10GbE, 1x GbE, and 4x 2.5GbE PoE+ via M12 X-coded connectors
- 2x SocketCAN and 2x USB3.2 Gen1 Type-C w/ DP alternative mode
- 8 to 48V wide-range DC input with reverse polarity protection and built-in ignition power control
- MIL-STD-810H compliant
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
SEMIL-2000GC
Description
Technical Specification
| SEMIL-2000GC | |||
| Processor | i3/i5/i7 12th/13th/14th gen. | ||
| RAM | Up to 64 GB DDR5 | ||
| Acceleration GPU | NVIDIA L4 GPU | ||
| VGA (DSub) | - | ||
| HDMI | - | ||
| DisplayPort | 2x Type-C USB connector supporting DP output (shared USB3.2) | ||
| Audio | - | ||
| Gigabit Ethernet | 2x 10GbE (with WoL) (M12 X-coded) 4x 2.5GbE (PoE+) (M12 X-coded) 1x GbE (with WoL) (M12 X-coded) |
||
| 2,5" HDD | 2x (supporting RAID 0/ 1) | ||
| mSATA | - | ||
| M.2 | 1x M.2 2280 M key NVMe socket (PCIe Gen4x4) for NVMe SSD 1x M.2 2242/3052 B key socket with dual SIM slot for M.2 5G/ 4G module 1x M.2 2230 E key socket for Wi-Fi |
||
| USB 3.2 | 2x Type-C (shared DisplayPort) | ||
| USB 2.0 | 2x USB (M12 A-coded) | ||
| RS-232 | 2x isolated 3-wire (COM1/ COM2) 1x isolated 3-wire (COM3) |
||
| RS-422/485 | 1x port (COM4) | ||
| miniPCIe | 3x full-size with SIM slot | ||
| CAN Bus | 2x isolated CAN 2.0 port | ||
| TPM | Supports dTPM 2.0 | ||
| Working temp. | -40°C to 70°C | ||
