Цена от 29,00 € без данък
High price? Log in and buy cheaper
Product out of stock
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRH 1S0MRH-series stepper motor, 29Ncm, flange 42mm, 1A, IP40In stockWarranty: 29,00 €35,67 €Login to check your price RH 1S0MRH-series stepper motor, 29Ncm, flange 42mm, 1A, IP40Availability:In stockNet price:29,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRH 1S0M-0HE0RH-series stepper motor, 29Ncm, flange 42mm, 1A, IP40, incremental encoder 4000CPROut of stock Warranty: 183,00 €225,09 €Login to check your price RH 1S0M-0HE0RH-series stepper motor, 29Ncm, flange 42mm, 1A, IP40, incremental encoder 4000CPRAvailability: Out of stockNet price:183,00 €
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCVMRH1S02M2m Power Cable for RH-series stepper motorIn stockWarranty: 16,00 €19,68 €Login to check your price CVMRH1S02M2m Power Cable for RH-series stepper motorAvailability:In stockNet price:16,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCVMRH1S0M330cm Power Cable for RH-series stepper motorIn stockWarranty: 14,00 €17,22 €Login to check your price CVMRH1S0M330cm Power Cable for RH-series stepper motorAvailability:In stockNet price:14,00 €
Description

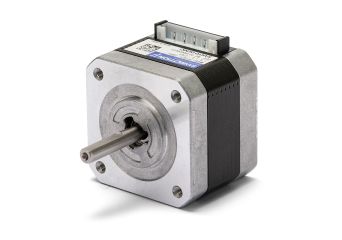

RH 1S0M motor is characterized by flange size 42 mm. ( NEMA 17 ) with holding torque up to 29 Ncm. Equipped with JST connector, it offers high torque with low vibrations and heating. Suggested R.T.A. driver: BSD series, CSD/CSDJ series/ A-CSD series, NDC/ A-NDC series.
Technical Specification
- Stepper motor
| Basic step angle (°) | 1,8 ± 0,09 |
| Bipolar current (A) | 1 |
| Resistance (Om) | 3,6 |
| Inductance (mH) | 7 |
| Bipolar holding torque (Ncm) | 29 |
| Rotor inertia (kgm2 x 10-7) | 31 |
| Teoretical acceleration (rad/s2) |
93500 |
| Back E.M.F. (V/Krpm) |
29 |
| Mass (kg) |
0,23 |
- Encoder
| Resolution | 4000 cpr |
| Index | Yes |
| Current consumption (mA) | 85 |
| High level output (V) | 3,4 - 2,4 (Imax=20mA) |
| Low level output (V) | 0,2 - 0,4 (Imax=20mA) |
| Output signal | Differential |
| Max. frequency (kHz) | 720 |
| Power supply voltage | 5 VDC ± 10% |

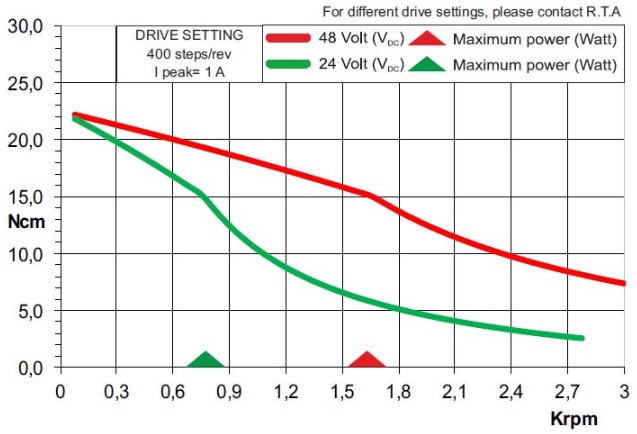

- Torque/speed curve
