Цена от 40,00 € без данък
High price? Log in and buy cheaper
Product out of stock
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRH 1S3MRH-series stepper motor, 80Ncm, flange 42mm, 1A, IP40In stockWarranty: 40,00 €49,20 €Login to check your price RH 1S3MRH-series stepper motor, 80Ncm, flange 42mm, 1A, IP40Availability:In stockNet price:40,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRH 1S3M-0HE0RH-series stepper motor, 80Ncm, flange 42mm, 1A, IP40, incremental encoder 4000CPROut of stock Warranty: 195,00 €239,85 €Login to check your price RH 1S3M-0HE0RH-series stepper motor, 80Ncm, flange 42mm, 1A, IP40, incremental encoder 4000CPRAvailability: Out of stockNet price:195,00 €
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCVEPAZD02M2m Encoder Cable for RH-series stepper motorIn stockWarranty: 27,00 €33,21 €Login to check your price CVEPAZD02M2m Encoder Cable for RH-series stepper motorAvailability:In stockNet price:27,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCVEPAZD03M3m Encoder Cable for RH-series stepper motorOut of stock Warranty: 28,00 €34,44 €Login to check your price CVEPAZD03M3m Encoder Cable for RH-series stepper motorAvailability: Out of stockNet price:28,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCVEPAZD05M5m Encoder Cable for RH-series stepper motorOut of stock Warranty: 36,00 €44,28 €Login to check your price CVEPAZD05M5m Encoder Cable for RH-series stepper motorAvailability: Out of stockNet price:36,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCVEPAZD0M330cm Encoder Cable for RH-series stepper motorIn stockWarranty: 22,00 €27,06 €Login to check your price CVEPAZD0M330cm Encoder Cable for RH-series stepper motorAvailability:In stockNet price:22,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCVEPAZD10M10m Encoder Cable for RH-series stepper motorOut of stock Warranty: 57,00 €70,11 €Login to check your price CVEPAZD10M10m Encoder Cable for RH-series stepper motorAvailability: Out of stockNet price:57,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCVMRH1S02M2m Power Cable for RH-series stepper motorIn stockWarranty: 16,00 €19,68 €Login to check your price CVMRH1S02M2m Power Cable for RH-series stepper motorAvailability:In stockNet price:16,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCVMRH1S0M330cm Power Cable for RH-series stepper motorIn stockWarranty: 14,00 €17,22 €Login to check your price CVMRH1S0M330cm Power Cable for RH-series stepper motorAvailability:In stockNet price:14,00 €
Description

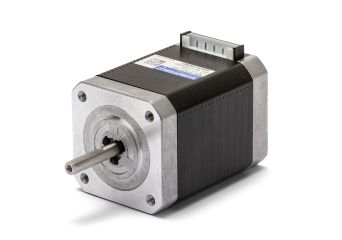

RH 1S3M motor is characterized by flange size 42 mm. ( NEMA 17 ) with holding torque up to 80 Ncm. Equipped with JST connector, it offers high torque with low vibrations and heating. Suggested R.T.A. driver: BSD series, CSD/CSDJ series/ A-CSD series, NDC/ A-NDC series.
Technical Specification
- Stepper motor
| Basic step angle (°) | 1,8 ± 0,09 |
| Bipolar current (A) | 1 |
| Resistance (Om) | 6,5 |
| Inductance (mH) | 16 |
| Bipolar holding torque (Ncm) | 80 |
| Rotor inertia (kgm2 x 10-7) | 94 |
| Teoretical acceleration (rad/s2) | 85100 |
| Back E.M.F. (V/Krpm) | 80 |
| Mass (kg) | 0,51 |
- Encoder
| Resolution | 4000 cpr |
| Index | Yes |
| Current consumption (mA) | 85 |
| High level output (V) | 3,4 - 2,4 (Imax=20mA) |
| Low level output (V) | 0,2 - 0,4 (Imax=20mA) |
| Output signal | Differential |
| Max. frequency (kHz) | 720 |
| Power supply voltage | 5 VDC ± 10% |

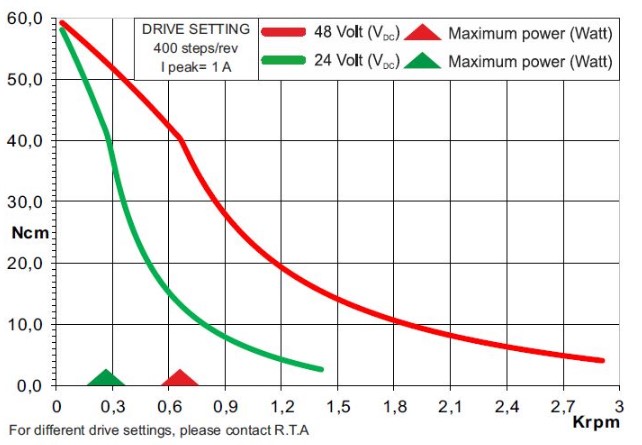

- Torque/speed curve
