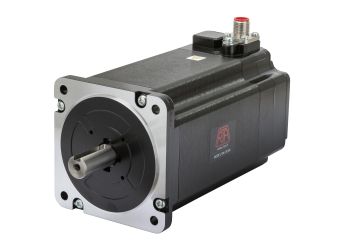

RM 3R3M

Industrial stepper motor

Производител: RTA

holding torque 920 Ncm,
bipolar current 4 A,
flange size 86 mm,
IP54

Цена от 363,00 € без данък

High price? Log in and buy cheaper

Product out of stock

Безплатна доставка от €100

Вижте 2 модела

Promocja cenowa na model HDR-15-5

Продукт, предназначен само за професионална употреба

Models
Accessories
Description
Technical Specification
Download

RM 3R3M

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
RM 3R3M RM-series stepper motor, 920Ncm, flange 86mm, 4A, IP54	Out of stock	Warranty:		363,00 € 446,49 € Login to check your price	Login to check your price	pcs.

RM 3R3M

RM-series stepper motor, 920Ncm, flange 86mm, 4A, IP54

Availability: Out of stock

Net price:

363,00 €

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
RM 3T3M-0HE0 RM-series stepper motor, 920Ncm, flange 86mm, 4A, IP54, incremental encoder 4000CPR	Out of stock	Warranty:		523,00 € 643,29 € Login to check your price	Login to check your price	pcs.

RM 3T3M-0HE0

RM-series stepper motor, 920Ncm, flange 86mm, 4A, IP54, incremental encoder 4000CPR

Availability: Out of stock

Net price:

523,00 €

Accessories

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
CVERM90PM01M 90 degree, 1m Encoder Cable for RM-series stepper motor	In stock	Warranty:		43,00 € 52,89 € Login to check your price	Login to check your price	pcs.

CVERM90PM01M

90 degree, 1m Encoder Cable for RM-series stepper motor

Availability:

In stock

Net price:

43,00 €

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
CVERM90PM03M 90 degree, 3m Encoder Cable for RM-series stepper motor	In stock	Warranty:		50,00 € 61,50 € Login to check your price	Login to check your price	pcs.

CVERM90PM03M

90 degree, 3m Encoder Cable for RM-series stepper motor

Availability:

In stock

Net price:

50,00 €

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
CVERM90PM05M 90 degree, 5m Encoder Cable for RM-series stepper motor	Out of stock	Warranty:		53,00 € 65,19 € Login to check your price	Login to check your price	pcs.

CVERM90PM05M

90 degree, 5m Encoder Cable for RM-series stepper motor

Availability: Out of stock

Net price:

53,00 €

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
CVERMPM01M 1m Encoder Cable for RM-series stepper motor	In stock	Warranty:		43,00 € 52,89 € Login to check your price	Login to check your price	pcs.

CVERMPM01M

1m Encoder Cable for RM-series stepper motor

Availability:

In stock

Net price:

43,00 €

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
CVERMPM03M 3m Encoder Cable for RM-series stepper motor	In stock	Warranty:		50,00 € 61,50 € Login to check your price	Login to check your price	pcs.

CVERMPM03M

3m Encoder Cable for RM-series stepper motor

Availability:

In stock

Net price:

50,00 €

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
CVERMPM05M 5m Encoder Cable for RM-series stepper motor	Out of stock	Warranty:		58,00 € 71,34 € Login to check your price	Login to check your price	pcs.

CVERMPM05M

5m Encoder Cable for RM-series stepper motor

Availability: Out of stock

Net price:

58,00 €

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
CVERMPM10M 10m Encoder Cable for RM-series stepper motor	Out of stock	Warranty:		72,00 € 88,56 € Login to check your price	Login to check your price	pcs.

CVERMPM10M

10m Encoder Cable for RM-series stepper motor

Availability: Out of stock

Net price:

72,00 €

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
CVMRM90PM01M 90 degree, 1m Power Cable for RM-series stepper motor	In stock	Warranty:		37,00 € 45,51 € Login to check your price	Login to check your price	pcs.

CVMRM90PM01M

90 degree, 1m Power Cable for RM-series stepper motor

Availability:

In stock

Net price:

37,00 €

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
CVMRM90PM03M 90 degree, 3m Power Cable for RM-series stepper motor	In stock	Warranty:		49,00 € 60,27 € Login to check your price	Login to check your price	pcs.

CVMRM90PM03M

90 degree, 3m Power Cable for RM-series stepper motor

Availability:

In stock

Net price:

49,00 €

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
CVMRM90PM05M 90 degree, 5m Power Cable for RM-series stepper motor	Out of stock	Warranty:		55,00 € 67,65 € Login to check your price	Login to check your price	pcs.

CVMRM90PM05M

90 degree, 5m Power Cable for RM-series stepper motor

Availability: Out of stock

Net price:

55,00 €

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
CVMRM90PM10M 90 degree, 10m Power Cable for RM-series stepper motor	Out of stock	Warranty:		79,00 € 97,17 € Login to check your price	Login to check your price	pcs.

CVMRM90PM10M

90 degree, 10m Power Cable for RM-series stepper motor

Availability: Out of stock

Net price:

79,00 €

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
CVMRMPM01M 1m Power Cable for RM-series stepper motor	In stock	Warranty:		30,00 € 36,90 € Login to check your price	Login to check your price	pcs.

CVMRMPM01M

1m Power Cable for RM-series stepper motor

Availability:

In stock

Net price:

30,00 €

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
CVMRMPM03M 3m Power Cable for RM-series stepper motor	In stock	Warranty:		42,00 € 51,66 € Login to check your price	Login to check your price	pcs.

CVMRMPM03M

3m Power Cable for RM-series stepper motor

Availability:

In stock

Net price:

42,00 €

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
CVMRMPM05M 5m Power Cable for RM-series stepper motor	Out of stock	Warranty:		55,00 € 67,65 € Login to check your price	Login to check your price	pcs.

CVMRMPM05M

5m Power Cable for RM-series stepper motor

Availability: Out of stock

Net price:

55,00 €

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
CVMRMPM10M 10m Power Cable for RM-series stepper motor	Out of stock	Warranty:		76,00 € 93,48 € Login to check your price	Login to check your price	pcs.

CVMRMPM10M

10m Power Cable for RM-series stepper motor

Availability: Out of stock

Net price:

76,00 €

Description

RM 3R3M motor is characterized by flange size 86 mm. with holding torque up to 920 Ncm.
Suggested R.T.A. driver: 230 VAC X-PLUS and X-MIND series.

Protection degree: IP54.
M12 connector on the motor for easy wiring.
High performance in terms of torque and power with compact size.
Coupling to drives with power supply directly from the main.
Class F insulation.
CE, UL and CSA marking.

Technical Specification

Stepper motor

Basic step angle (°)	1,8 ± 0,09
Bipolar current (A)	4
Resistance (Om)	1
Inductance (mH)	7,9
Bipolar holding torque (Ncm)	920
Rotor inertia (kgm² x 10^-7)	4500
Teoretical acceleration (rad/s²)	20500
Back E.M.F. (V/Krpm)	241
Mass (kg)	4,2

Encoder

Resolution	4000 cpr
Index	Yes
Current consumption (mA)	85
High level output (V)	3,4 - 2,4 (Imax=20mA)
Low level output (V)	0,2 - 0,4 (Imax=20mA)
Output signal	Differential
Max. frequency (kHz)	720
Power supply voltage	5 VDC ± 10%

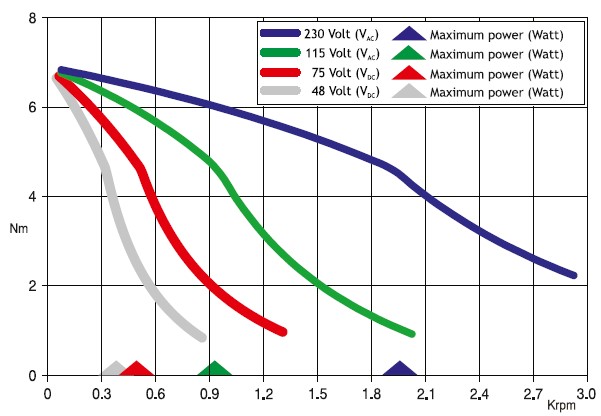

Torque/speed curve

Download

Karta katalogowa

Karta katalogowa
Silnik krokowy RM 3R3M (1.57 MB)
Silnik krokowy RM 3T3M z enkoderem (1.68 MB)
