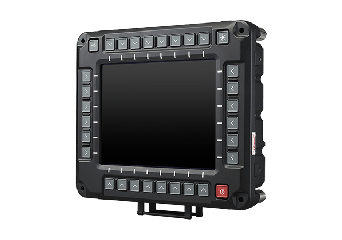

Terminal wojskowy XR10

Military Panel PCs 10.4"

Производител: RuggON
Производител: RuggON
  • High brightness LCD 10.4" 1000 nits with Multi-point Resistive Touch
  • Removable storage case for easy maintenance
  • Supports MXM interface to enhance graphic capability
  • IP68
  • Temperatura pracy -40°C do 70°C
  • MIL-STD-810G tested -- can withstand harsh environments
  • MIL-STD-461F -- EMC compliant
  • MIL-STD-1275E -- surge protection
Изчерпан

Безплатна доставка от €100

Promocja cenowa na model HDR-15-5

Продукт, предназначен само за професионална употреба
Terminal wojskowy XR10

Terminal wojskowy XR10

Техническа спецификация

  • The specifications below are for reference only. Contact us for more details
System
  • Intel® Core™ i7-6822EQ Quad core processor 2.0GHz (Turbo Boost up to 2.8GHz)
  • 8GB DDR4 XRDIMM, up to 16GB
  • M.2 2242 SATA MLC SSD x 2
Display
  • 10.4” TFT LCD XGA (1024 x 768) 1300 nits (typical)
  • Multi-point resistive touch
Expansion
  • MXM 3.0 Type A
  • Mini-PCIe slot x 2
I/O Interface
  • USB 2.0 x 6
RS-232 x 4, Isolation RS-422/485 x 4
  • Gigabit Ethernet x 4
  • GPIO x 8
  • VGA x 1, DVI-D x 1
  • Audio Line-in x 1, Line-out x 1, Mic-in x 1
  • CAN bus V2.0b x 2
  • Optional Video-in via mini-PCIe slot : CVBS video-in, HD-SDI video-in
  • Optional MXM Graphics input
Power
  • 28 VDC Nominal input
  • Ignition sense with time delay setting
  • Compliance with MIL-STD-1275E
Environmental
  • IEC 60529 IP67
  • MIL-STD-810G : Vibration, shock, salt fog
  • Operating temp : -40° C to +71° C
EMC MIL-STD-461F
