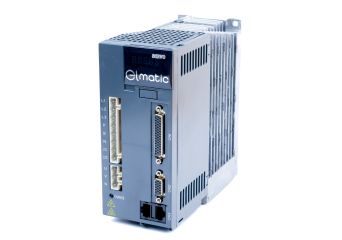

EMM-200A-D
Цена от 339,00 € без данък
При поръчка до 15:00 ч., пратката ще бъде изпратена същия ден In stock
Производител: Elmatic
- Pulse&Dir, Analog or manual control
- The system's fast response allows for suppression of fluctuations caused by low inertia or stiffness
- Precise positioning thanks to noise suppression functions
- Simple to install and wiring
- Miniaturization and low weight
Цена от 339,00 € без данък
High price? Log in and buy cheaper
Product out of stock
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Servo Drive 2 kW
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEMD100-200A-4(00)Servo EPD: 2kW, 3PH, STDIn stockWarranty: 339,00 €416,97 €Login to check your price EMD100-200A-4(00)Servo EPD: 2kW, 3PH, STDAvailability:In stockNet price:339,00 €
Useful products
Description
Elmatic servo drives are a budget solution for customers requiring dynamic and precise movement in applications. Servo drive with power from 0.1 to 11kW are designed for operation in a closed feedback loop with Elmatic servo motors and analog or pulse control using PLC or motion controllers. Full specification below.
What makes Elmatic servo unique?
- High dynamics: operating frequency of 1.3 kHz is a fast response of the system allowing suppression of fluctuations caused by low inertia or stiffness.
- 3-times overloading possibility.
- High resolution encoder: motors are equipped with a built-in encoder with a resolution of 23 bits, which allows the detection of over 8 million different positions..
- Attractive price: a motion control solution with wide possibilities while maintaining an attractive price.
Technical Specification
- Input power supply
| Main Circuit | 3x380~420VAC |
| Control Circuit | 1x200~230VAC |
- Control
| Control Modes | Position, velocity, torque |
| Feedback |
Incremental encoder: 2500, 5000 PPR Absolute encoder: 17, 20, 23bit |
- Operating Conditions
| Ambient Temperature | 0 ~ +55°C |
| Storage Temperature | -25 ~ +85°C |
| Ambient/Storage Humidity | <90% RH (no condensation) |
| Vibration Resistance | 4,9 m/s^2 (0,5g) |
| Impact Resistance | 19,6 m/s^2 (2g) |
| Configuration | Wall mounted |
- I/O Signals
| Encoder Dividing, Pulse Output |
Phase-A, Phase-B, Phase-Z, line driver output |
| Digital Inputs | 9 |
| Digital Outputs | 5 |
- Other
| Build-in regenerative resistor | Yes |
| Protection Functions | Overcurrent, overvoltage, low voltage, overload, regeneration error, overspeed |
| Display |
5-segment LED (build-in operator panel) |
| Communication | Modbus RTU |
Download
