EMD100-200A-4
Цена от 339,00 € без данък
При поръчка до 15:00 ч., пратката ще бъде изпратена същия ден In stock
|
Each servo motor comes with a 3-meter power and encoder cable in the package. |
Производител: Elmatic
- rated torque 10 Nm (max. 25 Nm)
- rated speed 2000 RPM (max. 2500 RPM)
- absolute 23bit encoder
- IP65
- optional brake
Цена от 339,00 € без данък
High price? Log in and buy cheaper
In delivery
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба

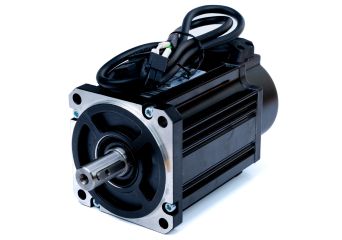

Servo Motor 2 kW
Models
Филтър: ()
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEMM-130SP200A25PAYYDMotor EPD: flange 130mm, 2kW, 2500rpmIn stockWarranty: 339,00 €416,97 €Login to check your price EMM-130SP200A25PAYYDMotor EPD: flange 130mm, 2kW, 2500rpmAvailability:In stockNet price:339,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEMM-130SP200A20PAYYDMotor EPD: flange 130mm, 2kW, 2000rpmIn stockWarranty: 388,00 €477,24 €Login to check your price EMM-130SP200A20PAYYDMotor EPD: flange 130mm, 2kW, 2000rpmAvailability:In stockNet price:388,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEMM-130SP230A15PAYYDMotor EPD: flange 130mm, 2,3kW, 1500rpmIn stockWarranty: 446,00 €548,58 €Login to check your price EMM-130SP230A15PAYYDMotor EPD: flange 130mm, 2,3kW, 1500rpmAvailability:In stockNet price:446,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEMM-130SP200A20PBYYDMotor EPD: flange 130mm, 2kW, 2000rpm, BRKOut of stock Warranty: 550,00 €676,50 €Login to check your price EMM-130SP200A20PBYYDMotor EPD: flange 130mm, 2kW, 2000rpm, BRKAvailability: Out of stockNet price:550,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEMM-130SP200A25PBYYDMotor EPD: flange 130mm, 2kW, 2500rpm, BRKOut of stock Warranty: 501,00 €616,23 €Login to check your price EMM-130SP200A25PBYYDMotor EPD: flange 130mm, 2kW, 2500rpm, BRKAvailability: Out of stockNet price:501,00 €
Useful products
Description
The wide power range of Elmatic servo motors allows them to be adapted to any size of machine. However, if the application requirements are higher, we offer planetary gears (LINK) that will significantly improve the performance of servo motors. Full motor specification later in the description.
What makes Elmatic servo unique?
- High dynamics: operating frequency of 1.3 kHz is a fast response of the system allowing suppression of fluctuations caused by low inertia or stiffness.
- 3-times overloading possibility.
- High resolution encoder: motors are equipped with a built-in encoder with a resolution of 23 bits, which allows the detection of over 8 million different positions..
- Attractive price: a motion control solution with wide possibilities while maintaining an attractive price.
Technical Specification
| Rated Output Power (kW) | 2 |
| Rated Torque (Nm) | 10 |
| Peak Torque (Nm) | 25 |
| Rated Current (A) | 6 |
| Rated Speed (RPM) | 2000 |
| Max. Speed (RPM) | 2500 |
| Rotor Moment of Inertia (with brake) (kg*cm^2) | 19,4 |
| Insulation class | F |
| Enclosure | IP65 / NEMA4X |
- Torque/speed curve (A - intermittent duty zone, B - continous duty zone)
