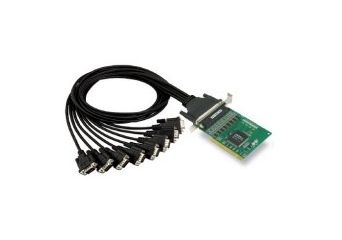

main product photo

CP-168U

8-port RS-232 Universal PCI serial board

Производител: MOXA
Производител: MOXA
  • Over 700 kbps data throughput for top performance
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Compatible with 3.3/5 V PCI and PCI-X
  • Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
  • Wide-temperature model available for -40 to 85°C environments
Цена от € 167,00 без данък

High price? Log in and buy cheaper

In stock

Поръчайте до 12:00 и ще бъде изпратен в рамките на деня

Безплатна доставка от €100

Вижте 2 модела

Promocja cenowa na model HDR-15-5

Продукт, предназначен само за професионална употреба
CP-168U

CP-168U

Models

Accessories

Description

The CP-168U is a smart, 8-port universal PCI board designed for POS and ATM applications. It is a top choice of industrial automation engineers and system integrators, and supports many different operating systems, including Windows, Linux, and even UNIX. In addition, each of the board’s eight RS-232 serial ports supports a fast 921.6 kbps baudrate. The CP-168U provides full modem control signals to ensure compatibility with a wide range of serial peripherals, and it works with both 3.3 V and 5 V PCI buses, allowing the board to be installed in virtually any available PC server.

Technical Specification

  • Serial Interface
Comm. Controller MU860 (16C550C compatible)
Bus 32-bit Universal PCI
Connector DB62 female
FIFO 128 bytes
Max. No. of Boards per PC 8
No. of Ports 8
Serial Standards RS-232
Baudrate 50 bps to 921.6 kbps
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control None, RTS/CTS, XON/XOFF
  • Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • Serial Software Features
Windows Drivers DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x
UNIX Drivers QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD
  • Power Parameters
Input Current 180 mA @ 5 VDC
  • Physical Characteristics
Dimensions 82 x 120 mm (3.22 x 4.72 in)
  • LED Interface
LED Indicators Built-in Tx, Rx LEDs for each port
  • Environmental Limits
Operating Temperature CP-168U: 0 to 55°C (32 to 131°F)
CP-168U-T: -40 to 85°C (-40 to 185°F)
Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
  • Standards and Certifications
EMC EN 55032/24
EMI CISPR 32, FCC Part 15B Class B
EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV
International Approval CP-168U: KC
  • Declaration
Green Product RoHS, CRoHS, WEEE
  • MTBF
Time 280,854 hrs
Standards Telcordia (Bellcore) Standard TR/SR
