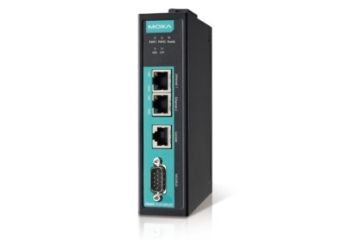

MGate 5105-MB-EIP
1-port MQTT-supported Modbus RTU/ASCII/TCP-to-EtherNet/IP gateways
Производител: MOXA
Производител: MOXA
- Connects fieldbus data to cloud through generic MQTT
- Supports MQTT connection with built-in device SDKs to Azure/Alibaba Cloud
- Protocol conversion between Modbus and EtherNet/IP
- Supports EtherNet/IP Scanner/Adapter
- Supports Modbus RTU/ASCII/TCP master/client and slave/server
- Supports MQTT connection with TLS and certificate in JSON and Raw data format
- Embedded traffic monitoring/diagnostic information for easy troubleshooting and cloud data transmission for cost evaluation and analysis
- microSD card for configuration backup/duplication and event logs, and data buffering when cloud connection is lost
- -40 to 75°C wide operating temperature models available
- Serial port with 2 kV isolation protection
- Security features based on IEC 62443
Цена от 607,00 € без данък
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
MGate 5105-MB-EIP
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMGate 5105-MB-EIP-T1-port Modbus RTU to EtherNet/IP gateway, -40 to 75°C operating temperatureIn stockWarranty: 764,00 €939,72 €Login to check your price MGate 5105-MB-EIP-T1-port Modbus RTU to EtherNet/IP gateway, -40 to 75°C operating temperatureAvailability:In stockNet price:764,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMGate 5105-MB-EIP1-port Modbus RTU to EtherNet/IP gateway, 0 to 60°C operating temperatureLabel Recommended
In delivery Warranty: 607,00 €746,61 €Login to check your price MGate 5105-MB-EIP1-port Modbus RTU to EtherNet/IP gateway, 0 to 60°C operating temperatureLabel Recommended
Availability: In deliveryNet price:607,00 €
Description
The MGate 5105-MB-EIP is an industrial Ethernet gateway for Modbus RTU/ASCII/TCP and EtherNet/IP network communications with IIoT applications, based on MQTT or third-party cloud services, such as Azure and Alibaba Cloud. To integrate existing Modbus devices onto an EtherNet/IP network, use the MGate 5105-MB-EIP as a Modbus master or slave to collect data and exchange data with EtherNet/IP devices. The latest exchange data will be stored in the gateway as well. The gateway converts stored Modbus data into EtherNet/IP packets so the EtherNet/IP scanner can control or monitor Modbus devices. The MQTT standard with supported cloud solutions on the MGate 5105-MB-EIP leverages advanced security, configuration, and diagnostics to troubleshoot technologies to deliver scalable and extensible solutions that are suitable for remote monitoring applications such as energy management and assets management.
Configuration Backup via microSD Card
The MGate 5105-MB-EIP is equipped with a microSD card slot. A microSD card can be used to back up both the system configuration and system log, and can be used to conveniently copy the same configuration to several MGate 5105-MP-EIP units. The configuration file stored in the microSD card will be copied to the MGate itself when the system is rebooted.
Effortless Configuration and Troubleshooting via Web Console
The MGate 5105-MB-EIP also provides a web console to make configuration easy without having to install an extra utility. Simply log in as an administrator to access all settings, or as a general user with read-only permission. Besides configuring basic protocol settings, you can use the web console to monitor I/O data values and transfers. In particular, I/O Data Mapping shows data addresses for both protocols in the gateway’s memory, and I/O Data View allows you to track data values for online nodes. Moreover, diagnostics and communication analysis for each protocol can also provide helpful information for troubleshooting.
Redundant Power Inputs
The MGate 5105-MB-EIP has dual power inputs for greater reliability. The power inputs allow simultaneous connection to 2 live DC power sources, so that continuous operation is provided even if one power source fails. The higher level of reliability makes these advanced Modbus-to-EtherNet/IP gateways ideal for demanding industrial applications.
Technical Specification
- Ethernet Interface
| 10/100BaseT(X) Ports (RJ45 connector) | 2 Auto MDI/MDI-X connection |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
- Ethernet Software Features
| Industrial Protocols | Modbus TCP Client (Master), Modbus TCP Server (Slave), EtherNet/IP Scanner, EtherNet/IP Adapter, MQTT |
| Configuration Options | Web Console (HTTP/HTTPS), Device Search Utility (DSU), MGate Manager, Telnet Console |
| Management | ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client |
| MIB | RFC1213, RFC1317 |
| Time Management | NTP Client |
- Serial Interface
| Console Port | RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1) |
| No. of Ports | 1 |
| Connector | DB9 male |
| Serial Standards | RS-232/422/485 |
| Baudrate | 50 bps to 921.6 kbps |
| Data Bits | 7, 8 |
| Parity | None, Even, Odd, Space, Mark |
| Stop Bits | 1, 2 |
| Flow Control | RTS Toggle (RS-232 only), RTS/CTS |
| RS-485 Data Direction Control | ADDC® (automatic data direction control) |
| Pull High/Low Resistor for RS-485 | 1 kilo-ohm, 150 kilo-ohms |
| Terminator for RS-485 | 120 ohms |
| Isolation | 2 kV (built-in) |
- Serial Signals
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
- Serial Software Features
| Configuration Options | Serial Console |
| Industrial Protocols | Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave |
- Modbus RTU/ASCII
| Mode | Master, Slave |
| Functions Supported | 1, 2, 3, 4, 5, 6, 15, 16, 23 |
| Max. No. of Commands | 100 |
| Input Data Size | 2048 bytes |
| Output Data Size | 2048 bytes |
- Modbus TCP
| Mode | Client (Master), Server (Slave) |
| Functions Supported | 1, 2, 3, 4, 5, 6, 15, 16, 23 |
| Max. No. of Client Connections | 16 |
| Max. No. of Server Connections | 32 |
| Max. No. of Commands | 100 |
| Input Data Size | 2048 bytes |
| Output Data Size | 2048 bytes |
- EtherNet/IP
| Mode | Scanner, Adapter |
| CIP Objects Supported | Identity, Message Router, Assembly, Connection Manager, TCP/IP interface, Ethernet link, Port |
| Max. No. of Scanner Connections | 16 (for read-only), 1 (for read/write) |
| Max. No. of Adapter Connections | 100 |
| Input Data Size | 496 bytes |
| Output Data Size | 496 bytes |
- MQTT
| Mode | Publisher/Subscriber of MQTT, Azure IoT Hub Device, Alibaba IoT Platform Device |
| Version Supported | v3.1.1 |
| QoS Level | QoS 0,1,2 |
| Secure Transmission | TLS (1.0, 1.1, 1.2) encryption with user's root CA, Client certificate, Private key |
| Max. No. of Data Tag | 300 data tags |
| Max. No. of Message | 20 messages |
| MQTT General Features | Keep Alive, Retain Message, Last Will Message, Clean Session |
- Memory
| microSD Slot | Up to 32 GB (SD 2.0 compatible; Data buffering up to 2 GB) |
- Power Parameters
| Input Voltage | 12 to 48 VDC |
| Input Current | 455 mA @ 12 VDC |
| Power Connector | Screw-fastened Euroblock terminal |
- Relays
| Contact Current Rating | Resistive load: 2 A @ 30 VDC |
- Physical Characteristics
| Housing | Metal |
| IP Rating | IP30 |
| Dimensions | 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in) |
| Weight | 507 g (1.12 lb) |
- Environmental Limits
| Operating Temperature | MGate 5105-MB-EIP: 0 to 60°C (32 to 140°F) MGate 5105-MB-EIP-T: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| Safety | EN 60950-1, UL 508 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class B |
| EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF |
| Hazardous Locations | ATEX, Class I Division 2, IECEx |
| Freefall | IEC 60068-2-32 |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6, IEC 60068-2-64 |
- MTBF
| Time | 859,422 hrs |
| Standards | Telcordia SR332 |
