Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-2005-ELUnmanaged Fast Ethernet switch with 5 10/100BaseT(X) ports and -10 to 60°C operating temperatureLabel Recommended
In stockWarranty: 84,00 €103,32 €Login to check your price EDS-2005-ELUnmanaged Fast Ethernet switch with 5 10/100BaseT(X) ports and -10 to 60°C operating temperatureLabel Recommended
Availability:In stockNet price:84,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-2005-EL-TUnmanaged Fast Ethernet switch with 5 10/100BaseT(X) ports and -40 to 75°C operating temperature,In delivery Warranty: 147,00 €180,81 €Login to check your price EDS-2005-EL-TUnmanaged Fast Ethernet switch with 5 10/100BaseT(X) ports and -40 to 75°C operating temperature,Availability: In deliveryNet price:147,00 €
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDIN rail power supply 15W 24V 0.63AIn stockWarranty: 11,00 €13,53 €Login to check your price DIN rail power supply 15W 24V 0.63AAvailability:In stockNet price:11,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add19" Rackmont setIn stockWarranty: 166,00 €204,18 €Login to check your price 19" Rackmont setAvailability:In stockNet price:166,00 €
Description

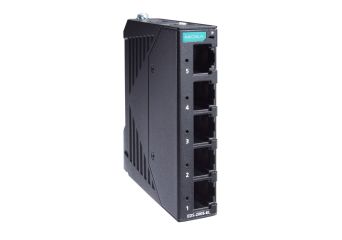

The EDS-2005-EL series of industrial Ethernet switches have five 10/100M copper ports, which are ideal for applications that require simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2005-EL Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-2005-EL Series has a rugged metal housing to ensure suitability for use in industrial environments.
The EDS-2005-EL Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capabilities. In addition to its compact size, the EDS-2005-EL Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2005-EL Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.
Technical Specification
- Ethernet Interface
| 10/100BaseT(X) Ports (RJ45 connector) | 5 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.1p for Class of Service IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow controlSwitch Properties |
| Processing Type | Store and Forward |
| MAC Table Size | 8 K |
| Packet Buffer Size | 4 Mbits |
- DIP Switch Configuration
| Ethernet Interface | Quality of Service (QoS), Broadcast Storm Protection (BSP) |
- Power Parameters
| Connection | 1 removable 2-contact terminal block(s) |
| Input Current | 0.045 A @ 24 VDC |
| Input Voltage | 12/24/48 VDC |
| Operating Voltage | 9.6 to 60 VDC |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
- Physical Characteristics
| Dimensions | 18 x 81 x 65 mm (0.7 x 3.19 x 2.56 in) |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Weight | 105 g (0.23 lb) |
| Housing | Metal |
- Environmental Limits
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Operating Temperature | EDS-2005-EL: -10 to 60°C (14 to 140°F) EDS-2005-EL-T: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
- Standards and Certifications
| Safety | UL 61010-2-201, EN 62368-1 (LVD) |
| EMC | EN 55032/35 |
| EMI | CISPR 22, 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| Freefall | IEC 60068-2-32 |
- MTBF
| Time | 4,814,369 hrs |
| Standards | Telcordia (Bellcore), GB |
- Warranty
| Warranty period | 5 years |
