Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-2008-ELUnmanaged Fast Ethernet switch with 8 10/100BaseT(X) ports and -10 to 60°C operating temperature, metal housingLabel Recommended
In stockWarranty: 121,00 €148,83 €Login to check your price EDS-2008-ELUnmanaged Fast Ethernet switch with 8 10/100BaseT(X) ports and -10 to 60°C operating temperature, metal housingLabel Recommended
Availability:In stockNet price:121,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-2008-EL-TUnmanaged Fast Ethernet switch with 8 10/100BaseT(X) ports and -40 to 75°C operating temperature, metal housingIn stockWarranty: 201,00 €247,23 €Login to check your price EDS-2008-EL-TUnmanaged Fast Ethernet switch with 8 10/100BaseT(X) ports and -40 to 75°C operating temperature, metal housingAvailability:In stockNet price:201,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-2008-EL-M-SCUnmanaged Fast Ethernet switch with 7 10/100BaseT(X) ports, 1 100BaseFX multi-mode port with SC connectors and -10 to 60°C operating temperature, metal housingIn stockWarranty: 225,00 €276,75 €Login to check your price EDS-2008-EL-M-SCUnmanaged Fast Ethernet switch with 7 10/100BaseT(X) ports, 1 100BaseFX multi-mode port with SC connectors and -10 to 60°C operating temperature, metal housingAvailability:In stockNet price:225,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-2008-EL-M-SC-TUnmanaged Fast Ethernet switch with 7 10/100BaseT(X) ports, 1 100BaseFX multi-mode port with SC connectors and -10 to 60°C operating temperature, metal housingIn stockWarranty: 279,00 €343,17 €Login to check your price EDS-2008-EL-M-SC-TUnmanaged Fast Ethernet switch with 7 10/100BaseT(X) ports, 1 100BaseFX multi-mode port with SC connectors and -10 to 60°C operating temperature, metal housingAvailability:In stockNet price:279,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-2008-EL-M-STUnmanaged Fast Ethernet switch with 7 10/100BaseT(X) ports, 1 100BaseFX multi-mode port with ST connectors and -10 to 60°C operating temperature, metal housingIn stockWarranty: 225,00 €276,75 €Login to check your price EDS-2008-EL-M-STUnmanaged Fast Ethernet switch with 7 10/100BaseT(X) ports, 1 100BaseFX multi-mode port with ST connectors and -10 to 60°C operating temperature, metal housingAvailability:In stockNet price:225,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-2008-EL-M-ST-TUnmanaged Fast Ethernet switch with 7 10/100BaseT(X) ports, 1 100BaseFX multi-mode port with ST connectors and -40 to 75°C operating temperature, metal housingOut of stock Warranty: 279,00 €343,17 €Login to check your price EDS-2008-EL-M-ST-TUnmanaged Fast Ethernet switch with 7 10/100BaseT(X) ports, 1 100BaseFX multi-mode port with ST connectors and -40 to 75°C operating temperature, metal housingAvailability: Out of stockNet price:279,00 €
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDIN rail power supply 15W 24V 0.63AIn stockWarranty: 11,00 €13,53 €Login to check your price DIN rail power supply 15W 24V 0.63AAvailability:In stockNet price:11,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add19" Rackmont setIn stockWarranty: 166,00 €204,18 €Login to check your price 19" Rackmont setAvailability:In stockNet price:166,00 €
Description

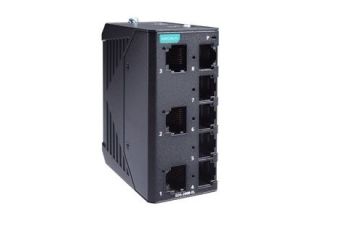

The EDS-2008-EL series of industrial Ethernet switches have up to eight 10/100M copper ports, which are ideal for applications that require simple industrial Ethernet connections. To provide greater versatility for use with applications from different industries, the EDS-2008-EL Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-2008-EL Series has a rugged metal housing to ensure suitability for use in industrial environments and fiber connections (Multi-mode SC or ST) can also be selected.
The EDS-2008-EL Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capability. In addition to its compact size, the EDS-2008-EL Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2008-EL Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.
Technical Specification
- Ethernet Interface
| 10/100BaseT(X) Ports (RJ45 connector) | EDS-2008-EL: 8 EDS-2008-EL-M-ST: 7 EDS-2008-EL-M-SC: 7 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed |
| 100BaseFX Ports (multi-mode SC connector) | EDS-2008-EL-M-SC: 1 |
| 100BaseFX Ports (multi-mode ST connector) | EDS-2008-EL-M-ST: 1 |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.1p for Class of Service |
- Switch Properties
| Processing Type | Store and Forward |
| MAC Table Size | 8 K |
| Packet Buffer Size | 4 Mbits |
- DIP Switch Configuration
| Ethernet Interface | Quality of Service (QoS), Broadcast Storm Protection (BSP) |
- Power Parameters
| Connection | 1 removable 2-contact terminal block(s) |
| Input Current | EDS-2008-EL: 0.067A @ 24 VDC EDS-2008-EL-M-ST/EDS-2008-EL-M-SC: 0.105A @ 24 VDC |
| Input Voltage | 12/24/48 VDC |
| Operating Voltage | 9.6 to 60 VDC |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
- Physical Characteristics
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Weight | 163 g (0.36 lb) |
| Housing | Metal |
| Dimensions | EDS-2008-EL: 36 x 81 x 65 mm (1.4 x 3.19 x 2.56 in) EDS-2008-EL-M-ST: 36 x 81 x 70.9 mm (1.4 x 3.19 x 2.79 in) EDS-2008-EL-M-SC: 36 x 81 x 67.9 mm (1.4 x 3.19 x 2.67 in) |
- Environmental Limits
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Operating Temperature | EDS-2008-EL/EDS-2008-EL-M-SC/EDS-2008-EL-M-ST: -10 to 60°C (14 to 140°F) EDS-2008-EL-T/EDS-2008-EL-M-SC-T/EDS-2008-EL-M-ST-T: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
- Standards and Certifications
| Safety | UL 61010-2-201, EN 62368-1 (LVD) |
| EMC | EN 55032/35 |
| EMI | CISPR 22, 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| Freefall | IEC 60068-2-32 |
- MTBF
| Time | 3,472,660 hrs |
| Standards | Telcordia (Bellcore), GB |
- Warranty
| Warranty period | 5 years |
Download
