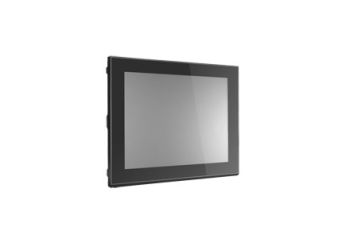

main product photo

MPC-2120

12-inch industrial fanless panel computers with Zone 2 certifications

Производител: MOXA
Производител: MOXA
  • 12-inch panel computer
  • Intel Atom® processor: E3845 1.91 GHz or E3826 1.46 GHz
  • -40 to 70°C wide-temperature design, no fan or heater
  • 1000-nit sunlight-readable LCD
  • Class 1 Division 2, ATEX Zone 2, and IECEx certified
  • Wide-range 10 to 36 VDC power input
  • DNV GL certified for marine applications
Product out of stock

Free shipping from €300

Вижте 8 модела

Promocja cenowa na model HDR-15-5

Komputer panelowy do strefy zagrożonej wybuchem (ATEX)

MPC-2120

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    MPC-2120-E2-T
    12-inches Industrial Panel Computer,E3826 CPU, 4GB RAM, 1000 nits, 16:9 aspect ratio, IP66 in front, touch.
    		 Out of stock Warranty:
    MPC-2120-E2-T
    12-inches Industrial Panel Computer,E3826 CPU, 4GB RAM, 1000 nits, 16:9 aspect ratio, IP66 in front, touch.
    Availability: Out of stock
    -
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    MPC-2120-E2-T-W7E
    12-inches Industrial Panel Computer, E3826 CPU, 4GB RAM, 32GB CFast, W7E OS, 1000 nits, 16:9 aspect ratio, IP66 in front, touch.
    		 Out of stock Warranty:
    MPC-2120-E2-T-W7E
    12-inches Industrial Panel Computer, E3826 CPU, 4GB RAM, 32GB CFast, W7E OS, 1000 nits, 16:9 aspect ratio, IP66 in front, touch.
    Availability: Out of stock
    -
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    MPC-2120-E4-T
    12-inches Industrial Panel Computer,E3845 CPU, 4GB RAM, 1000 nits, 16:9 aspect ratio, IP66 in front, touch.
    		 Out of stock Warranty:
    MPC-2120-E4-T
    12-inches Industrial Panel Computer,E3845 CPU, 4GB RAM, 1000 nits, 16:9 aspect ratio, IP66 in front, touch.
    Availability: Out of stock
    -
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    MPC-2120-E4-T-W7E
    12-inches Industrial Panel Computer, E3845 CPU, 4GB RAM, 32GB CFast, W7E OS, 1000 nits, 16:9 aspect ratio, IP66 in front, touch.
    		 Out of stock Warranty:
    MPC-2120-E4-T-W7E
    12-inches Industrial Panel Computer, E3845 CPU, 4GB RAM, 32GB CFast, W7E OS, 1000 nits, 16:9 aspect ratio, IP66 in front, touch.
    Availability: Out of stock
    -
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    MPC-2120-E2-LB-T
    12-inches Industrial Panel Computer,E3826 CPU, 4GB RAM, 500 nits, 16:9 aspect ratio, IP66 in front, touch
    		 Out of stock Warranty:
    MPC-2120-E2-LB-T
    12-inches Industrial Panel Computer,E3826 CPU, 4GB RAM, 500 nits, 16:9 aspect ratio, IP66 in front, touch
    Availability: Out of stock
    -
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    MPC-2120-E2-LB-T-W7E
    12-inches Industrial Panel Computer,E3826 CPU, 4GB RAM, 32GB CFast, W7E OS, 500 nits, 16:9 aspect ratio, IP66 in front, touch
    		 Out of stock Warranty:
    MPC-2120-E2-LB-T-W7E
    12-inches Industrial Panel Computer,E3826 CPU, 4GB RAM, 32GB CFast, W7E OS, 500 nits, 16:9 aspect ratio, IP66 in front, touch
    Availability: Out of stock
    -
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    MPC-2120-E4-LB-T
    12-inches Industrial Panel Computer,E3845 CPU, 4GB RAM, 500 nits, 16:9 aspect ratio, IP66 in front, touch
    		 Out of stock Warranty:
    MPC-2120-E4-LB-T
    12-inches Industrial Panel Computer,E3845 CPU, 4GB RAM, 500 nits, 16:9 aspect ratio, IP66 in front, touch
    Availability: Out of stock
    -
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    MPC-2120-E4-LB-T-W7E
    12-inches Industrial Panel Computer,E3845 CPU, 4GB RAM, 32GB CFast, W7E OS, 500 nits, 16:9 aspect ratio, IP66 in front, touch
    		 Out of stock Warranty:
    MPC-2120-E4-LB-T-W7E
    12-inches Industrial Panel Computer,E3845 CPU, 4GB RAM, 32GB CFast, W7E OS, 500 nits, 16:9 aspect ratio, IP66 in front, touch
    Availability: Out of stock
    -

Description

The MPC-2120 12-inch panel computers with E3800 Series Intel Atom® processor deliver a reliable, durable, and versatile platform for use in industrial environments. With two software selectable RS-232/422/485 serial ports and two Gigabit Ethernet ports, the MPC-2120 panel computers support a wide variety of serial interfaces as well as high-speed IT communications, all with native network redundancy.

The MPC-2120 Series panel computers are designed with a wide, -40 to 70°C temperature range, and come with a fanless, streamlined enclosure designed for highly efficient heat dissipation, making this one of the most reliable industrial platforms available for harsh, hot, outdoor environments like oil and gas fields and drilling platforms. The MPC-2120 also features a 1000-nit LCD panel offering a sunlight-readable, projected-capacitive, multi-touch screen, providing an excellent user experience for outdoor applications.

Technical Specification

  • Computer
CPU MPC-2120-E2-T: Intel Atom® Processor E3826 (1M Cache, 1.46 GHz)
MPC-2120-E4-T: Intel Atom® Processor E3845 (2M Cache, 1.91 GHz)
Graphics Controller Intel® HD Graphics
System Memory Pre-installed 4 GB DDR3L
System Memory Slot SODIMM DDR3/DDR3L slot x 1
Pre-installed OS MPC-2120-E2-T-W7E/MPC-2120-E4-T-W7E/MPC-2120-E2-T-LB-W7E/MPC-2120-E4-LB-T-W7E: Windows Embedded Standard 7 (WS7P) 64-bit
Supported OS Windows 10 Pro 64-bit
Windows 10 Embedded IoT Ent 2016 LTSB Entry 64-bit
Windows 7 Pro for Embedded Systems
Windows Embedded Standard 7 (WS7P) 64-bit
Linux Debian 9
Storage Slot CFast slot x 1
SD slots x 1, SD 3.0 (SDHC/SDXC) socket
Storage Pre-installed MPC-2120-E2-T-W7E/MPC-2120-E4-T-W7E/MPC-2120-E2-LB-T-W7E/MPC-2120-E4-LB-T-W7E: 32 GB CFast Card
  • Computer Interface
Ethernet Ports Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
Serial Ports RS-232/422/485 ports x 2, software selectable (DB9 male)
USB 2.0 USB 2.0 hosts x 2, type-A connectors
Digital Input DIs x 4
Digital Output DOs x 4
  • LED Indicators
System Power x 1
LAN 2 per port (10/100/1000 Mbps)
  • Display
Light Intensity (Brightness) MPC-2120-E2-T: 1000 cd/m2
MPC-2120-E4-T: 1000 cd/m2
MPC-2120-E2-T-W7E: 1000 cd/m2
MPC-2120-E4-T-W7E: 1000 cd/m2
MPC-2120-E2-LB-T: 500 cd/m2
MPC-2120-E2-LB-T-W7E: 500 cd/m2
MPC-2120-E4-LB-T: 500 cd/m2
MPC-2120-E4-LB-T-W7E: 500 cd/m2
Active Display Area 245.76 (H) x 184.32 (V) mm
Aspect Ratio 4:3
Contrast Ratio 700:1
Max. No. of Colors 16.2M (8-bit/color)
Panel Size 12-inch viewable image
Panel Type TN
Pixel Pitch (RGB) 0.240 (H) x 0.240 (V) mm
Pixels 1024 x 768
Response Time 5 ms (gray to gray)
Viewing Angles 160°/140°
  • Touch Function
Touch Type Capacitive Touch (PCAP)
Touch Support Points 4 points
Glove Support Yes
  • Serial Interface
Baudrate 50 bps to 115.2 kbps
Data Bits 5, 6, 7, 8
Flow Control RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
Parity None, Even, Odd, Space, Mark
Stop Bits 1, 1.5, 2
  • Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
  • Power Parameters
Input Voltage 10 to 36 VDC
Power Consumption 40 W (max.)
  • Physical Characteristics
Housing Metal
IP Rating IP66, front
IP20, rear
Dimensions 306 x 245 x 64 mm (12 x 9.6 x 2.5 in)
Weight 2,640 g (5.82 lb)
  • Environmental Limits
Operating Temperature -40 to 70°C (-40 to 158°F)
Storage Temperature (package included) -40 to 70°C (-40 to 158°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
  • Standards and Certifications
EMC EN 55032/24
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Environmental Testing IEC 60068-2-1, DNVGL-CG-0339
IEC 60068-2-2, DNVGL-CG-0339
IEC 60068-2-2, IEC 60945
IEC 60068-2-30, IEC 60945
Hazardous Locations ATEX, Class I Division 2, IECEx
Maritime DNV-GL
Mechanical Protection Rating IEC 60529, IP code
Safety EN 60950-1, IEC 60950-1, UL 60950-1
Shock IEC 60068-2-27
Vibration IEC 60068-2-6, IEC 60068-2-6, IEC 60945, IEC 60068-2-64, DNVGL-CG-0339
  • Declaration
Green Product RoHS, CRoHS, WEEE
