Производител: MOXA

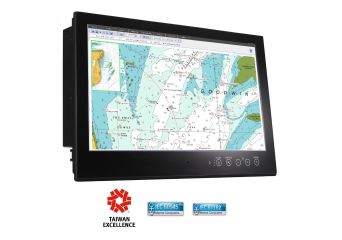

- 24-inch panel computer
- Color calibrated for ECDIS compliance (available by CTOS)
- Intel® Core™ processor: i7 3517UE 1.7 GHz or Celeron® 1047UE 1.40 GHz
- SavvyTouch display controls
- Fanless system design
- Built-in NMEA 0183 and 3-in-1 software selectable RS-232/422/485 interfaces
- Multiple power supplies (AC & DC)
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPC-2240X24 inch fanless panel computer with Intel Celeron 1.4GHz CPU, NMEA 0183, SSD trays, AC&DC powerOut of stock Warranty: MPC-2240X24 inch fanless panel computer with Intel Celeron 1.4GHz CPU, NMEA 0183, SSD trays, AC&DC powerAvailability: Out of stock- -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPC-2240Z24 inch fanless panel computer with Intel Celeron 1.4GHz CPU, NMEA 0183, SSD trays, AC&DC power, Projected capacitive touch screen, tape bondingOut of stock Warranty: MPC-2240Z24 inch fanless panel computer with Intel Celeron 1.4GHz CPU, NMEA 0183, SSD trays, AC&DC power, Projected capacitive touch screen, tape bondingAvailability: Out of stock- -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPC-2247X24 inch fanless panel computer with Intel Core i7 processor 2610UE 1.50GHz CPU, NMEA 0183, SSD trays, dual AC/DC power inputs, tap bondingOut of stock Warranty: MPC-2247X24 inch fanless panel computer with Intel Core i7 processor 2610UE 1.50GHz CPU, NMEA 0183, SSD trays, dual AC/DC power inputs, tap bondingAvailability: Out of stock- -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPC-2247Z24 inch fanless panel computer with Intel Core i7 processor 3517UE 1.50GHz CPU, NMEA 0183, SSD trays, dual AC/DC power inputs, Projected capacitive touch screen, tape bondingOut of stock Warranty: MPC-2247Z24 inch fanless panel computer with Intel Core i7 processor 3517UE 1.50GHz CPU, NMEA 0183, SSD trays, dual AC/DC power inputs, Projected capacitive touch screen, tape bondingAvailability: Out of stock-
Description
MPC-2240 Series panel computers feature Intel® processors Ivy Bridge Core or Celeron and built-in 4 GB system memory, delivering a reliable, high-performance platform of wide versatility for use in industrial marine environments. With its RS-232/422/485 serial, NMEA 0183, and Gigabit Ethernet ports, the MPC- 2240 panel computer supports a wide variety of serial- and marine-specific interfaces alongside high-speed IT communications, all with native network redundancy.
The MPC-2240 Series comes with a range of standard display enhancements useful in industrial environments (including 0 to 100% full-range dimming, 178°/178° wide viewing angles, optional optical bonding, and/or multi-touch screen), as well as Moxa’s innovative SavvyTouch display controls.
The MPC-2240 panel computers are compliant with several marine industry standards, including IEC 60945 4th, IEC 61174, IEC 61162, DNV 2.4, and IACS E10, verifying their resilient and durability in marine operations. An optional IP65-rated unibody shell provides strong additional protection against the harsh conditions found in marine environments. The MPC-2240 Series delivers rugged, type-approved, high-performance, and user-friendly panel computers that are perfect for ECDIS navigation systems and other marine IBS applications.
Technical Specification
- Computer
| CPU | MPC-2240X/2240Z: Intel® Celeron® Processor 1047UE (2M Cache, 1.40 GHz) MPC-2247X/2247Z: Intel® Core™ i7-3517UE Processor (4M Cache, up to 2.80 GHz) |
| System Chipset | Mobile Intel® HM65 Express Chipset |
| Graphics Controller | Intel® HD Graphics 520 |
| System Memory Pre-installed | 4 GB DDR3/DDR3L |
| System Memory Slot | SODIMM DDR3/DDR3L slot x 1 |
| Pre-installed OS | OS is not pre-installed |
| Supported OS | Windows 7 Pro for Embedded Systems Windows Embedded Standard 7 (WS7P) 64-bit Windows 10 Pro 64-bit Windows 10 Embedded IoT Ent 2016 LTSB High End EPKEA Windows 10 Embedded IoT Ent 2016 LTSB Value EPKEA |
| Storage Slot | 2.5-inch HDD/SSD slots x 2 |
- Computer Interface
| Ethernet Ports | Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2 |
| Serial Ports | RS-232/422/485 ports x 2, software selectable (DB9 male) |
| USB 2.0 | USB 2.0 hosts x 4, type-A connectors |
| Audio Input/Output | Line in x 1, Line out x 1, 3.5 mm phone jack |
| PS/2 | Keyboard PS/2 x 1, Mouse PS/2 x 1 |
| Video Output | DVI-D x 1, 29-pin DVI-D connectors (female) VGA x 1, 15-pin D-sub connector (female) |
| NMEA Port | NMEA 0183 ports x 8 (terminal block) |
- LED Indicators
| System | Power x 1 |
| LAN | 2 per port (10/100/1000 Mbps) |
- Display
| Active Display Area | 531.36 (H) x 98.89 (V) mm |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 5000:1 |
| Light Intensity (Brightness) | 300 cd/m2 |
| Max. No. of Colors | 16.7M (8-bit/color) |
| Panel Size | 24-inch viewable image |
| Panel Type | MVA |
| Pixel Pitch (RGB) | 0.276 (H) x 0.276 (V) mm |
| Pixels | 1920 x 1080 |
| Response Time | 25 ms (gray to gray) |
| Viewing Angles | 178°/178° |
- Touch Function
| Touch Type | MPC-2240Z/2247Z: Capacitive Touch (PCAP) MPC-2240X/2247X: None |
| Touch Support Points | MPC-2240Z/2247Z: 4 points |
- Serial Interface
| Baudrate | 50 bps to 115.2 kbps |
| Data Bits | 5, 6, 7, 8 |
| Flow Control | RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only) |
| Parity | None, Even, Odd, Space, Mark |
| Stop Bits | 1, 1.5, 2 |
| NMEA Interface | Serial Standards: NMEA 0183: RS-422 NMEA 2000: CAN bus (available on request) Baudrate: 4800 bps Data Bits: 8 Handshake: None Optical Isolation Protection: 3 kV Parity: None Serial Standards: NMEA 0183v2 (NMEA 2000 available on request) Stop Bits: 1, 1.5, 2 Voltage Differential: -6 V to +6 V (maximal differential level) |
- Serial Signals
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
- Power Parameters
| Input Voltage | 100 to 240 VAC, 18 to 34 VDC |
- Physical Characteristics
| Housing | Metal |
| IP Rating | IP54, front IP20, rear |
| Dimensions | 595 x 393 x 75 mm (23.44 x 15.48 x 2.95 in) |
| Weight | 12,400 g (27.34 lb) |
- Environmental Limits
| Operating Temperature | -15 to 55°C (5 to 131°F) |
| Storage Temperature (package included) | -20 to 60°C (-4 to 140°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V |
| Environmental Testing | IEC 60068-2-1, DNVGL-CG-0339 IEC 60068-2-2, DNVGL-CG-0339 IEC 60068-2-2, IEC 60945 IEC 60068-2-30, IEC 60945 |
| Maritime | ABS, CCS, DNV-GL |
| Safety | EN 60950-1, IEC 60950-1, UL 60950-1 |
| Vibration | IEC 60068-2-6, IEC 60945, IEC 60068-2-64, DNVGL-CG-0339 |
